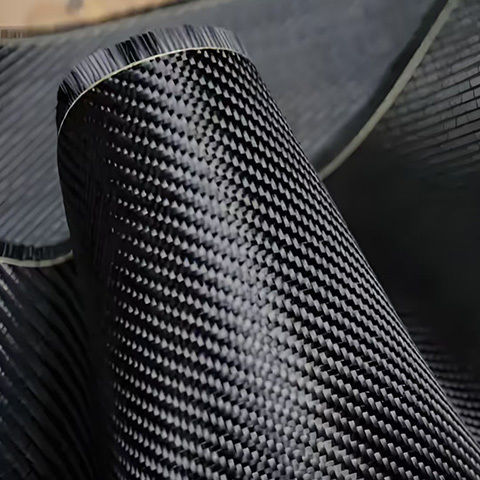

Unidirectional technical fabric

carbon fiberindustrialfor electrical insulation

Carbon fiber woven fabric, with its characteristics of lightweight, high strength, and corrosion resistance, is mainly used in four major fields: building reinforcement, aerospace, automotive industry, and sports equipment. Product Details Introduction to Carbon Fiber Carbon fiber is a new type of fiber material with a carbon content of over 95% and high strength and modulus. It has the characteristics of high hardness, high strength, light weight, high chemical resistance, and high temperature resistance. At the same time, it also has electrical and thermal conductivity and designability, which can be used to develop more new materials. Introduction to unidirectional carbon fiber prepreg Unidirectional carbon fiber prepreg is a high-performance composite material intermediate, made by precision impregnation process of continuous carbon fiber bundles arranged in a unidirectional manner with a specific resin matrix (such as epoxy resin). - High strength and lightweight: Unidirectional arrangement of fibers maximizes load-bearing efficiency, with a tensile strength 6-12 times that of steel and a density only 1/4 of steel, significantly improving the specific strength/stiffness by 37. - Accurate fiber/resin ratio: The resin content can be as low as 28 ± 2% (such as SEIREN UD030 series) to achieve optimal mechanical properties. - Process stability: Pre impregnated resin ensures layer adhesion, reduces resin mixing errors in traditional processes, and improves product consistency. - Rapid solidification innovation: The curing time of new materials (such as SEIREN UD series) has been shortened from 60 minutes to 1 minute, without the need for frozen storage, reducing energy consumption. Technical Specifications Unidirectional carbon fiber prepreg UD carbon prepreg Specification and model | modulus | Fiber weight (g/㎡) | thickness (mm) | resin content (%) | total weight (g/㎡) | width of cloth (mm) | Roll length (m) 01000 | 24ton | 11 | 0.015 | 50.0 | 22.0 | 1000 | 150 01500 | 24ton | 15.5 | 0.020 | 45.0 | 28.0 | 1000 | 150 02000 | 24ton | 20 | 0.025 | 40.0 | 33.0 | 1000-1200 | 150 03000 | 24ton | 30 | 0.035 | 35.0 | 46.0 | 1000-1200 | 150 05400 | 24ton | 54 | 0.057 | 25.0 | 72.0 | 1000 | 150 07500 | 24ton | 75 | 0.060 | 20.0 | 94.0 | 1000 | 100 10000 | 24ton | 100 | 0.095 | 30.0 | 143.0 | 1000 | 100 12500 | 24ton | 125 | 0.120 | 30.0 | 179.0 | 1000 | 100 15000 | 24ton | 150 | 0.140 | 30.0 | 214.0 | 1000 | 100 17500 | 24ton | 175 | 0.160 | 30.0 | 250.0 | 1000 | 100 Notes: 1. The resin content can be adjusted according to customer needs. 2. The weight per unit area of fibers is not limited to the data presented in the table. The weight per unit area of fibers ranges from 10-600/㎡ and can be customized according to customer needs. Application scope Our company's unidirectional carbon fiber prepreg products are widely used in the aerospace industry, including automotive components, bicycles, golf clubs, arrow shafts, fishing rods, ship hulls and oars, sports equipment, textile equipment, medical equipment, and more. Key Features / Technical Specifications - Lightweight - High strength - Corrosion resistance - High hardness - High chemical resistance - High temperature resistance - Electrical and thermal conductivity - Designability for new materials - Customizable resin content and fiber weight
