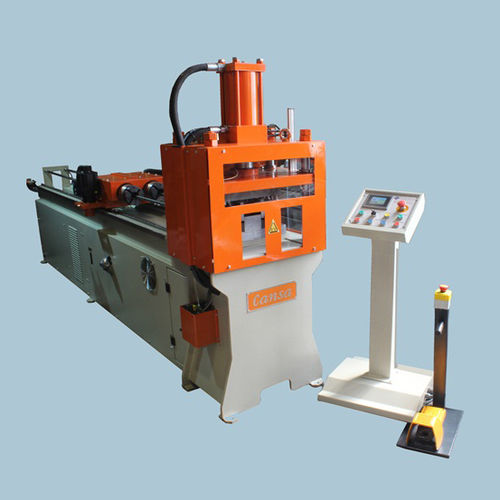

CNC punching machine / hydraulic / tube / profile
PDM-3000

{{requestButtons}}

Characteristics

  • Control:

    CNC

  • Drive type:

    hydraulic

  • Product handled:

    tube, profile

  • Pressing force:

    294.2 kN

Description

■CNC profile and pipe punching machine
■Maximum pipe diameter 90 mm
■Maximum profile size 40X80 - 60X60 mm
■Very precise progress with servo motor and planet reduction gear
■Hydraulic punching
■30 tons hydraulic press
■Total motor power 5.5 kW
■Pneumatic profile-pipe retaining clamp
■Blowing at the core automatically and burr throw
■Automatically activated hydraulic oil cooler and fan
■Timed automatic lubrication for working components
■Switch adjustable hydraulic press
■CNC system and 4.3" touch screen
■Manual or automatic operation on the screen
■To see daily/total amount of production on the screen
■To follow error messages on the screen and on the watch page
■Foot pedal or button control optionally
■Ability to record programmes
■Standard machine length for punching 3000 mm
■Maximum hydraulic pressure 180 bar
■Electrical panel safety lock and panel lock with key
■Two years guarantee; technical service and training confidency by CANSA MAKINA
■Suitable for CE,
