Multi-speed motor Sh71-4/2AW
inductionthree-phase400 V

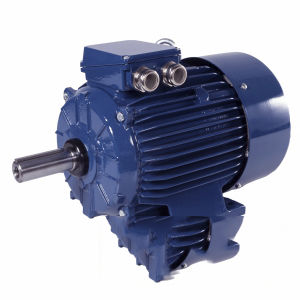

Multi-speed motor - Sh71-4/2AW - Cantoni Motor - induction / three-phase / 400 V
Multi-speed motor - Sh71-4/2AW - Cantoni Motor - induction / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
400 V
Configuration
aluminium, squirrel-cage rotor
Protection class
IP55, IP54
Number of poles
4-pole, 2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
multi-speed, IEC
Power

70 W, 280 W
(0.1 hp, 0.38 hp)

Intensity

0.3 A

Torque

0.48 Nm, 0.96 Nm
(0.35403 ft.lb, 0.70806 ft.lb)

Rotational speed

1,420 rpm, 1,500 rpm
(8,922.1231 rad.min-1, 9,424.778 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2|1.8 Winding connection Y|YY Starting current ratio [ 3.7|3.2 Frequency [Hz] 50|50 Rated output [HP] 0.09|0.37 Service factor [ 1.0|1.0 Efficiency at rated (full) load 50.0|50.0 % Duty S1|S1 Synchronous speed [rpm] 1500|3000 Power factor at rated (full) load [ 0.70|0.70 Starting torque ratio [ 1.6|1.6 Frame size 71 Terminal box position top Starting method DOL / DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62032Z Frequency converter supply on demand Bearing on ND-side 62032Z Mounting arrangement IMB3/B5/B35/B14 Bearings regreasing no Housing - material aluminium Weight (IMB3) [kg] 4.9 Feet - material aluminium Moment of inertia [kgm2] 0.000606 Bearing shields - material aluminium
