Multi-speed motor Sg160M-6/4/2
inductionthree-phase400 V

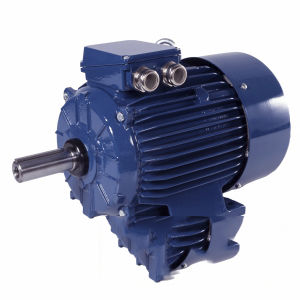

Multi-speed motor - Sg160M-6/4/2 - Cantoni Motor - induction / three-phase / 400 V
Multi-speed motor - Sg160M-6/4/2 - Cantoni Motor - induction / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
400 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
4-pole, 2-pole, 6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
multi-speed, IEC
Power

4 kW, 6.2 kW, 7.7 kW
(5.44 hp, 8.43 hp, 10.47 hp)

Intensity

9.4 A, 13.5 A, 15.2 A

Torque

24.97 Nm, 39.38 Nm, 40.28 Nm
(18.416927 ft.lb, 29.045197 ft.lb, 29.709003 ft.lb)

Rotational speed

970 rpm, 1,470 rpm, 2,945 rpm
(6,094.6897 rad.min-1, 9,236.2824 rad.min-1, 18,503.9807 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.3|2.8|2.6 Winding connection Y|∆|YY Starting current ratio [ 5.1|6.8|7.0 Frequency [Hz] 50|50 Efficiency at 2/4 of full load [ 78.9|80.1|73.6% Rated output [HP] 5.5|8.4|10.3 Efficiency at 3/4 of full load [ 81.6|83.3|78.5% Service factor [ 1.0|1.0|1.0 Efficiency at rated (full) load [ 81.6|84.1|80.4% Duty S1|S1 Synchronous speed [rpm] 1000|1500|3000 Power factor at 2/4 of full load [ 0.54|0.59|0.81 Power factor at 3/4 of full load [ 0.67|0.71|0.88 Power factor at rated (full) load [ 0.75|0.79|0.91 Starting torque ratio [ 1.7|1.8|1.5 Sound pressure level [dB] 64|67|82 Frame size 160 Sound power level [dB] 72|75|77 Terminal box position top Starting method DOL / DOL / DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63092Z Frequency converter supply on demand Bearing on ND-side 63092Z
