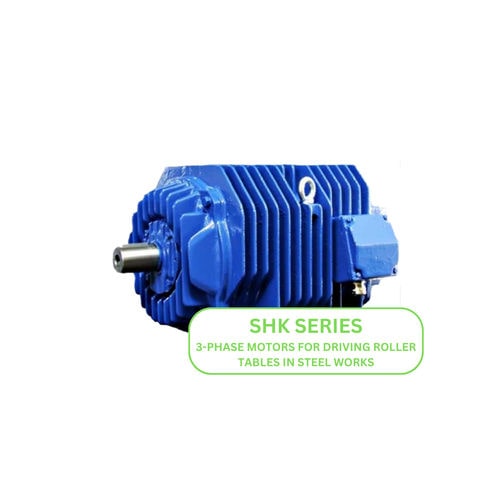

Asynchronous motor SHK series3-phase550 Vsquirrel cage
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, 3-phase
- Voltage
- 550 V
- Configuration
- squirrel cage, cast iron, TENV
- Protection class
- IP44
- Number of poles
- 8-pole, 10-pole, 12-pole, 24-pole
- Applications
- industrial, heavy-duty
- Other characteristics
- custom, low-speed, frequency
- Power
Max.: 10 kW
(13.6 hp)Min.: 1.1 kW
(1.5 hp)- Intensity
Max.: 11 A
Min.: 3.2 A
- Torque
Max.: 88 Nm
(64.905469 ft.lb)Min.: 29 Nm
(21.389302 ft.lb)- Rotational speed
Max.: 750 rpm
(4,712.389 rad.min-1)Min.: 250 rpm
(1,570.7963 rad.min-1)- Diameter
Max.: 180 mm
(7.09 in)Min.: 160 mm
(6.3 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 40 °C
(104 °F)
Description
Purpose: for driving of roller tables in steel works.
Supply: from mains
Starting- up: direct; via star-delta switch
Climate: industrial
Operating time per year: unlimited
Environment:
+ without explosive conditions
+ without salt mist
+ without corrosive agents
