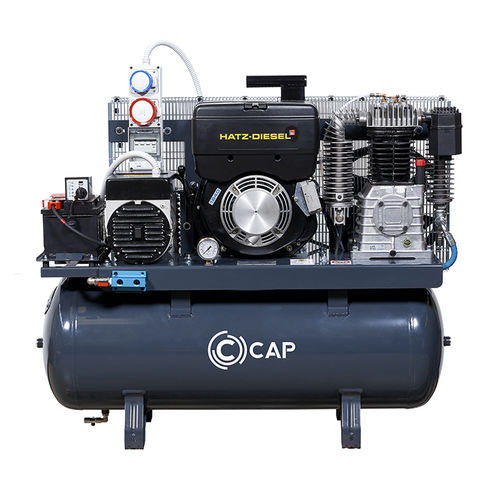

Piston compressor ARCO270-MTairdiesel-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- diesel-powered
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 220 V, 380 V
- Other characteristics
- tank-mounted, two-stage
- Tank volume
270 l
(71.3 gal)- Pressure
Max.: 12 bar
(174.05 psi)Min.: 10 bar
(145.04 psi)- Flow
800 l/min
(211.34 us gal/min)- Power
10.2 ch
(10.2 hp)- Length
1,550 mm
(61.02 in)- Width
600 mm
(23.62 in)- Height
1,100 mm
(43.31 in)- Weight
210 kg
(463 lb)
Description
Practical, functional and versatile. The Multienergy Diesel motorized machine in the ARCO series can be customized with a single-phase and three-phase current generator, with or without an AVR stabilizer.
GENERATOR MONO - 220 V - 6.5 kVA
GENERATOR THREE - 380 V - 7.5 kVA
ENGINE - Hatz
FUEL SUPPLY - Diesel
STARTER - Electric
