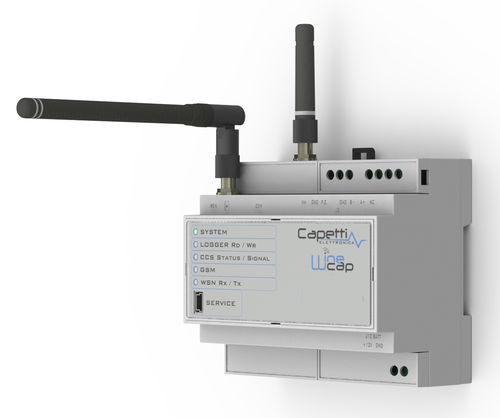

Industrial gateway MWDG-GSM-M1

GPRSWSNGSM

Modular Wireless Datalogger Gateway - Data gathering, storage and export gateway - Provided with RS485 with MODBUS RTU protocol and GSM module for connection to the Cloud Service - 15W-24Vdc externally powered (HDR1524 accessory), 2 relay outputs. TECHNICAL DATA Power supply - 12-24Vdc (alimentatore non incluso) Protection fuse - automatico auto ripristinante Included antennas - Antenna WSN installabile in esterno - cavo 3m (opzione: prolunga 5m) Antenna GSM Power consumption - 3 W Relay terminals charge (MWDG-GSM-M1, M2 only) - Resistive charge (2 A – 30 VDC) Radio Frequency - ISM 868MHz Connections - USB, RS485 MODBUS, Relay, GSM/GPRS(depending by model) Operating Conditions - Temperature: -20 ÷ +60°C Humidity: 0 ÷ 90% (without condensate) Sealing - IP30
