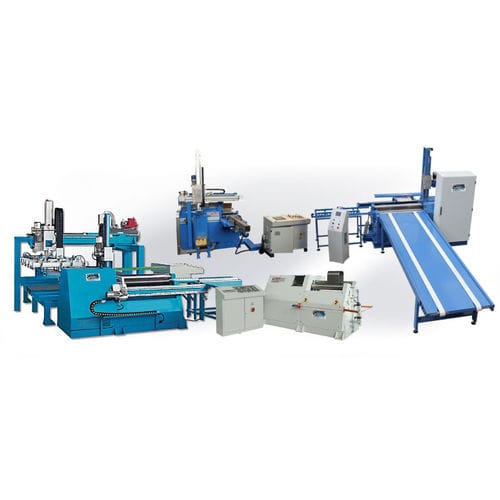

4-roll plate bending machine

hydraulicpneumaticautomatic

Our High Speed Auto Cycle double pinch plate rolls are available in both hydraulic and pneumatic actuated styles with standard, NC or CNC controls. These machines are designed for manufacturing efficiency by using an automated work cycle for the production of cylindrical, radiused, segmental and poly-centric parts at the touch of the Start Button. Movements of both hydraulic and pneumatic versions are of the highest precision and incorporate leading edge technology in order to rapidly and accurately perform high volume production runs. They are engineered for high speed continuous production. Add auto loading & ejector systems and you have a powerful tool to increase production rates, reduce handling time Choose from our ISC, HDTS, QAP & QAI Series Automatic Cycle 4 Roll models groups encompassing over 30 standard sizes. All can be tailored to your specific production needs. Carell 2 Roll Auto-cycle machines can also be built as production cells. UNIQUE FEATURES Capacities from 15” to 96” long x 26 Ga to 3/16” thick plate Automated bending cycles Top roll and pinch rolls driven in rotation Hardened, heat treated alloy steel rolls High polished, non-marring roll surface finish High speed rolling velocity Automatic drop-end release at end of cycle Compact space-saving designs Top support/deflectors Sheet feed squaring arm and adjustable back stops OPTIONAL EQUIPMENT Sheet-Loading systems from pallets or blank stacks Cylinder ejector systems Automated sheet alignment systems Multiple pallet blank shuttle systems Special machine configurations for dedicated needs
