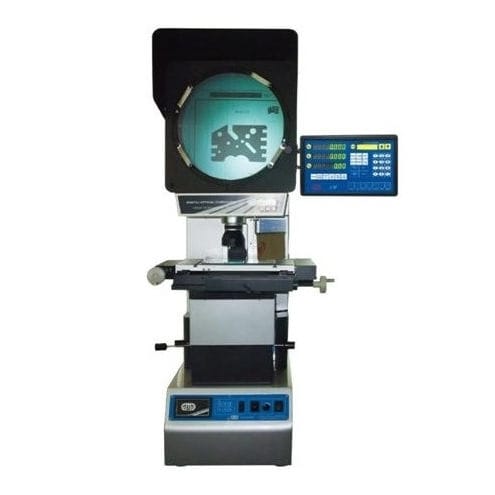

Vertical profile projector PV-30 DE series

digital

Z axis motorized Profile Projector (Optical Comparator) Vertical Type Digital PV-3000DE Series Profile Projector (Optical Comparator) the Z-axis uses stepper motor drive, electric focusing, simultaneously increasing the count in the Z-axis grating, ladder components can be measured, greatly increased the performance. In addition, PV-3000DE Series Profile Projector, the lens magnification is complete, customers can measure according to the different objects match different lens. Profile Projector Features: 5X Lens, Larger vision; electric Z axis, a better mode of operation. PV series profile projectors are reliable and affordable measuring system of high precision and efficiency. An excellent solution to the most critical requirments of high quality Optical Profile Measuring Suitable for measuring different shapes. Complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats ect. Most effective device to measure most 2 Dimensional parameters like linear dimensions and angles. The components, such as linear scale, digital readout, optical lens, etc., are all made by Carmar Technology. Profile Projector Features: 1.Excellent optical measuring system to project precisely magnified image in Profile Projector. 2.Magnification accuracy : 0.08% contour, 0.12% surface. 3.Equipped with 3M DRO(DC3000) data processing system and foot-switch for measuring. 4.Erect image measuring for different requirements.
