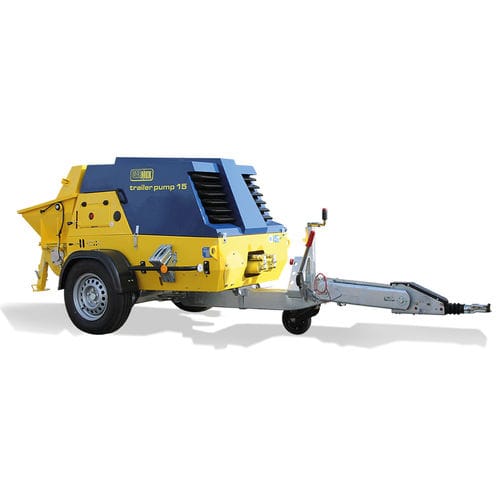

Trailer-mounted concrete pump 15
for constructiondieselpiston

Add to favorites

Compare this product

Go to the CARMIX - METALGALANTE website for more information

Characteristics

Configuration: trailer-mounted
Applications: for construction
Type of fuel: diesel
Other characteristics: piston
Output: 15 m³/h
(529.7 ft³/h)
Pumping pressure: 70 bar
(1,015.3 psi)
Width: 1,495 mm
(59 in)
Length: 4,100 mm
(161 in)
Height: 1,540 mm
(61 in)
Weight: 1,550 kg
(3,417 lb)

Description

2-cylinder piston pumps, hydraulic driven Ideal for pumping COMPLETE WITH AUTOMATIC GREASING SYSTEM Max pumping Height: 60-70 m Max pumping distance: 80-90 m • Yanmar 31HP 3 Cylinders liquid cooled diesel engine • Concrete hopper with agitator • Grid with 12V vibrator • Pumping unit with S-Tilting valve for automatic compensation of clearance and wear • EasySpritz system: best pumping performance also at low flow rate • 4” Victaulic delivery manifold (= 100 mm) • Control panel with electromechanical devices • 4-Function wire remote control • Road-towable unit complete with parking brake and lights • Compact and easy to move
