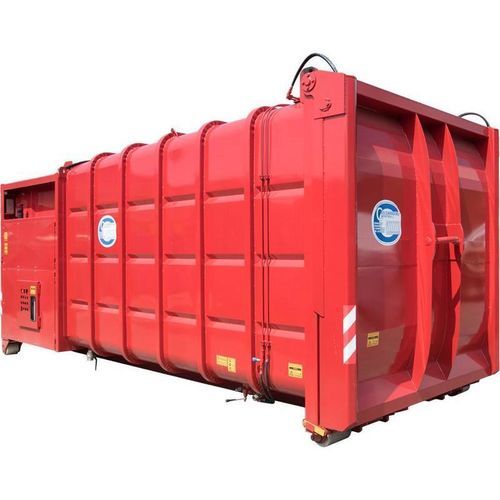

Wet waste compactor CM series

stationaryhydraulicsingle-blade

Compression is achieved through the oscillating action of a joint that allows waste to be conveyed and compacted. - The push cylinders are external and therefore not in contact with the waste. The special structure is characterized by a truncated-conical rear part with calendered vertical ribs and horizontally press-bent reinforcements. Additionally, the low-height loading mouth allows for unloading and transfer with satellite vehicles. General Features - Manufactured with quality steel and a truncated-conical structure to facilitate the unloading phase; - Electrical panel equipped with PLC and approved according to current CE regulations; - Hydraulic power unit with motor from 4 KW to 11 KW, allowing a compaction force from 30 to 50 tons; - Flag-type rear door with mechanical closure; - Water-based painting with low environmental impact; - CE compliance and user manual included. Optionals - Hydraulic tilting door, openable via quick couplings to the truck's hydraulic system, with acid-resistant sealing gasket on the door and hydraulic ejector to facilitate emptying; - Photoelectric cell for automatic start upon waste detection; - Photoelectric cell for satellite vehicle detection; - Sliding roof with steel or mesh cover; - Mobile or fixed control panel; - Custom adhesive branding on the sides of the compactor with logos and writings. Mini Single-Blade Compactors Our mini single-blade compactors are ideal for reducing the volume of wet waste in confined spaces such as underground islands, maintaining the same quality standards, combining the efficiency and quality of the compactor with reduced volumes. - Flag door: Mini single-blade compactor with flag door. - Tilting door: Mini single-blade compactor with hydraulic tilting door. - Welaki: Mini single-blade compactor Welaki. Technical Specifications: - External length: 4500 mm (CMM11), 4800 mm (CMM13), 6400 mm (CM22), 7200 mm (CM25) - Total height: 2200 mm (CMM11, CMM13), 2600 mm (CM22, CM25) - Total width: 2200 mm (CMM11, CMM13), 2550 mm (CM22, CM25) - Loading mouth width: 1750 mm (CMM11, CMM13), 2100 mm (CM22, CM25) - Motor power: 4 Kw (CMM11, CMM13), 11 Kw (CM22, CM25) - Press force: 30 Ton (CMM11, CMM13), 50 Ton (CM22, CM25) - Volume: 11 m³ (CMM11), 13 m³ (CMM13), 22 m³ (CM22), 25 m³ (CM25)
