Headed pin CL-xx-TP series
steelprecision

headed pin
headed pin
headed pin
headed pin
headed pin
Add to favorites
Compare this product


Characteristics

Type
headed
Material
steel
Applications
precision

Description

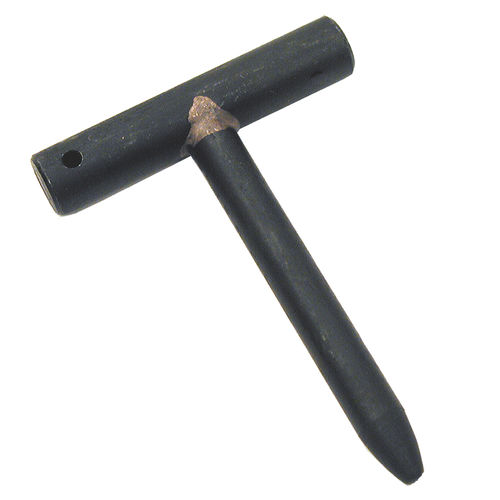

T Pins are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Available in pin diameters from 1/8 to 3/4", including some number and letter sizes (4 to 20mm in metric), most in a choice of several pin lengths. Made in USA. T Pins can be used for accurately aligning two plates To order T Pins with a standard cable assembly attached, add "-C" to the part number, e.g. CL-7-TP-C (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).
