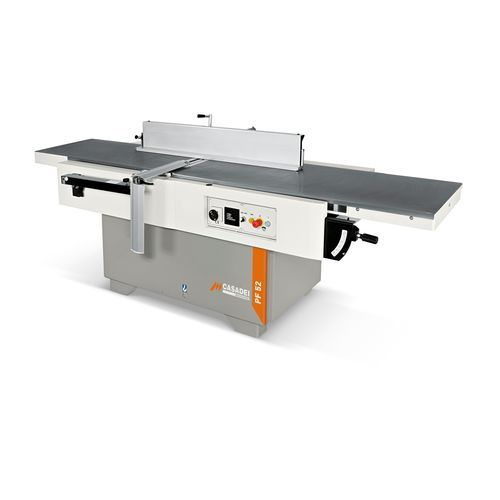

Planer-thicknesser surface planer PF 52

for wood

Product overview
The PF 520 surface planer is designed for professional woodworking shops and industrial users requiring precise planing and straightening of long workpieces.

Advantages

• Reliability: Worktables are adjusted via parallelogram connecting rods to maintain perfect parallelism with the cutter block and a constant distance at any cutting depth, reducing defects caused by vibration during heavy stock removal.
• Flexibility: Very long, ribbed cast-iron worktables enable accurate straightening of long parts. Tiltable planing fence (90°–45°) allows diverse machining operations.
• Ergonomics: Front-mounted, ergonomically positioned control panel provides easy access for the operator.

Technical data
PF 520
Total length of surface tables: 2750 mm
Useful working width: 520 mm
Max. stock removal: 8 mm
Planing fence tiltable 90°÷45°: 1200 x 190 mm
Cutter block diameter: 120 mm
No. knives: 4
Motor power at 50 Hz: 5 kW / 7 Hp
Motor power at 60 Hz: 6 kW / 8 Hp

Features / specifications

• Total length of surface tables: 2750 mm
• Useful working width: 520 mm
• Maximum stock removal: 8 mm
• Planing fence tiltable from 90° to 45° (fence dimension: 1200 x 190 mm)
• Cutter block diameter: 120 mm
• Number of knives: 4
• Motor power: 5 kW (50 Hz) / 6 kW (60 Hz) — equivalent to 7 Hp (50 Hz) / 8 Hp (60 Hz)
• Worktables adjustable by parallelogram connecting rods for constant distance to cutter block and reduced vibration defects
• Very long ribbed cast iron worktables for straightening long parts
• Ergonomically positioned front control panel
