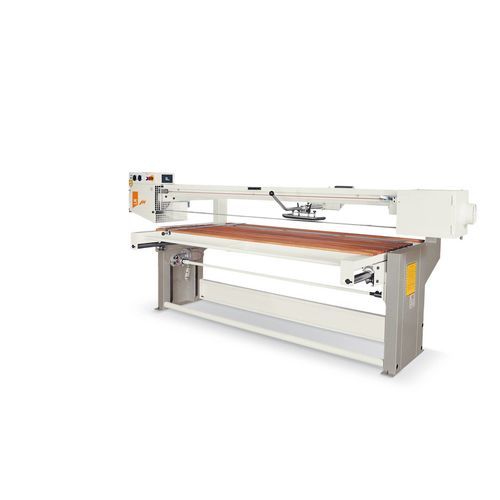

Belt sander LN series

stationaryelectricfor wood

Product overview
The LN series stroke sanders LN 2500 and LN 3000 feature a heavy machine frame that maintains machining precision on large workpieces. Large-diameter pulleys provide a sanding belt cutting speed up to 18 m/s. The deep gooseneck and elevated gooseneck height permit sanding of oversized parts.

Advantages

• Sturdiness: heavy machine frame ensures precision under demanding workloads.
• High cutting speed: large pulleys enable sanding belt speed up to 18 m/s for effective material removal.
• Large-part capability: deep gooseneck (820 mm) and gooseneck height (180 mm) allow processing of large-sized components.

Technical data

• Series: LN
• Available worktable lengths: LN 2500 — 2500 mm; LN 3000 — 3000 mm
• Worktable width: 1100 mm
• Vertical stroke: 580 mm
• Sanding belt length: LN 2500 — 7100 mm; LN 3000 — 8100 mm
• Gooseneck depth: 820 mm
• Gooseneck height: 180 mm
• Main motor power with reverse rotation (S6): 4 kW (4.8) at 50 Hz; 4.8 kW (5.5) at 60 Hz

Typical applications

• Sanding of large panels and boards
• Surface preparation prior to finishing and coating
• Industrial use in furniture production, panel processing and joinery
