piling drilling rig / crawler / rotary / hydraulic

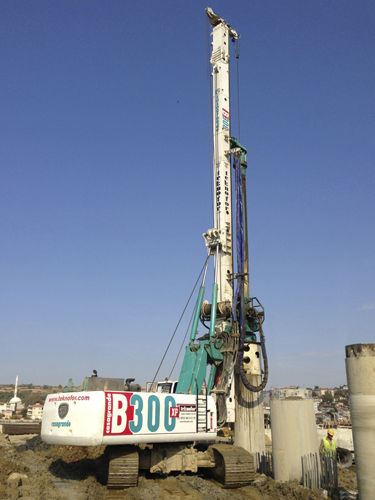

B300 XP

{{requestButtons}}

Characteristics

  • Drilling type:

    piling

  • Mobility:

    crawler

  • Drilling unit:

    rotary

  • Other characteristics:

    hydraulic

  • Drilling diameter:

    Max.: 2,500 mm

    Min.: 0 mm

  • Drilling depth:

    Max.: 90 m (295'03")

    Min.: 0 m (0'00")

Description

Cassandre piling equipment B300 XP has a maximum depth of 90m and maximum diameter of 2500mm. The maximum depth of C.F.A. piles is 29 m and maximum diameter is 1200mm. The engine has power of 330 kW, crawler width is 3000÷4480 mm, and shoes width is 900mm. Main winch line pull is 270 kN and auxiliary winch line pull is 134 kN.

Crowd-ram has an extraction force of 211 kN, crowd force of 180 kN, and stroke of 6000 mm. Crowd winch has extraction force of 400 kN, crowd force of 400 kN, and stroke of 15000mm. The rotary head has a torque of 300 kNm and drilling speed of 29 rpm. The weight in working condition is 90000 kg.
