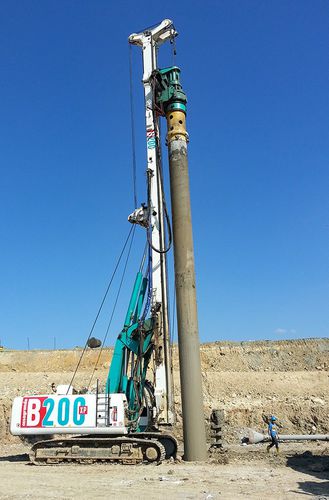

Geotechnical drilling rig B200 XP-2
multifunctionpilingdiaphragm wall

geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
geotechnical drilling rig
Add to favorites
Compare this product


Characteristics

Function
geotechnical
Applications
multifunction, piling, diaphragm wall
Mobility
crawler
Drilling unit
rotary
Other characteristics
hydraulic
Drilling diameter

Min.: 0 mm
(0 in)

Max.: 1,800 mm
(71 in)

Drilling depth

Min.: 0 m
(0'00" )

Max.: 68 m
(223'01" )

Machine weight

65 t
(71.7 us ton)

Motor power

246 kW
(334.47 hp)

Description

The Casagrande B200 XP-2 is a machine dedicated to giving the specialist contractor equipment to perform large diameter rotary and CFA piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the field of foundations and geotechnical engineering The Casagrande B200 XP-2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment. Designed to work on the most difficult sites and has excellent technical characteristics: 240 kN high speed winch for fast work, the H22 rotary head has a maximum torque output of 210 kNm and speed up to 34 rpm, it is ideal for drilling large and small diameter boreholes and for driving long casings. “Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B200 XP-2 is designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.
