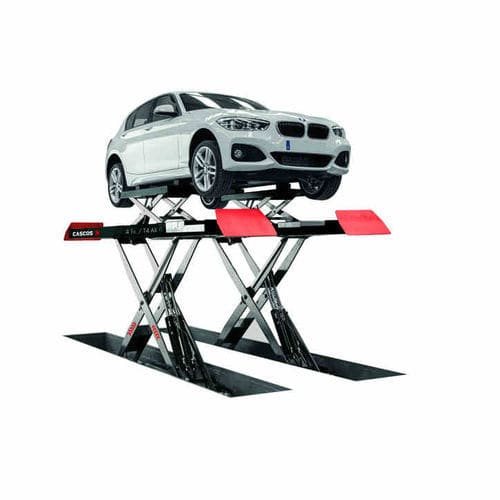

Double-scissor post lift T4AX

4 tonelectro-hydraulic400 V

Model of 4 Tn and length of alignment runway of 4,800 mm. with auxiliary lifting (wheels free) of 3,500 kg The most fully equipped lift, very much in demand by garages specialising in tyres due to its versatility and adaptation to all types of work. Front recessing equipped with 3 mobile regulation trays. These lifts come equipped with pneumatic locking of alignment plates. It lifts the car from the wheels, like the 4 post lifts, with the advantage of saving space in the garage by eliminating posts. Principal and auxiliary lifts equipped with double hydraulic system (4 cylinders) 2 master + 2 slave, crosswise. Hydraulic safety. Equipped with guide rail for auxiliary jack. Equipped as standard with manual pump for lowering, pneumatic pressure regulator and water separator filter. Convenient to use as it has a new automatic system for seeking the optimum level for every user. Reinforced base (150 kg) equipped with 8 level adjustment points. Very quiet hydraulic operation. Our T4 lifts stand out due to their finishes, their robustness and their reliability. Available in onground and inground versions. Structure and reinforced base Very robust structure and base, manufactured based on a solid tread. Reinforced base (150 kg). Base equipped with 8 adjustment points for levelling the platform. Structure and reinforced base Protection and safety Manual pump for emergency lowering. Regulation of pneumatic pressure for the correct operation of the safety mechanism. Water separating filter for a longer useful life of the cylinders and safety devices. Principal and auxiliary lifts equipped with double hydraulic system of 4 cylinders (2 master + 2 slave) for greater safety.
