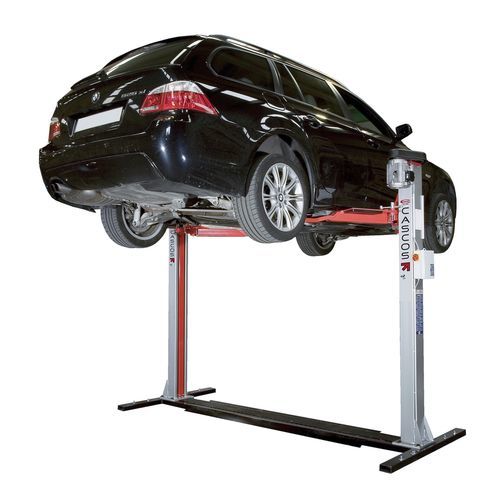

2 post lift C-5 WAGON
5 tonelectromechanical400V

2 post lift
2 post lift
2 post lift
2 post lift
2 post lift
2 post lift
2 post lift
Add to favorites
Compare this product


Characteristics

Type
2 post
Maximum load
5 ton
Operation
electromechanical
Voltage
400V, 220 V
Applications
for car, for trucks
Lifting height

Min.: 150 mm (5.906 in)

Max.: 2,000 mm (78.74 in)

Description

5 Tn with solid base three phase electromechanical symmetrical triple extension arm XL bimotor Provides all the advantages of a Cascos 2 post lift: solidity, reliability and durability. Versatility for mechanical and bodywork tasks. Ample working space between posts. Reversibility: Cascos lifts make it possible to lift the vehicle in both directions, facilitating use in garages with less space. Minimum maintenance. Part no.: extensive availability of low cost spare parts that are supplied quickly. Accessories: wide variety of accessories for greater user comfort and work with special vehicles. Lift exclusively designed for specialists in vans of all types up to 5,000 kg. Their 4 arms measuring 1,810 mm each enable safe work with most vans on the market. Posts / SlenderTec Our SlenderTec profiles, specially designed and hot-rolled, enable us to build lifts with narrow posts that are more resistant to torsion and flexion than other lifts made with folded sheet metal and similar materials. The SlenderTec technology makes our posts impossible to deform, always looking like they did on the first day. Working width Thanks to our high resistance SlenderTec post, our lifts provide the largest working distance between posts from 2,700 mm to 3,000 mm. occupying as little space as possible in your garage. This large interior space also provides comfort while working, with optimum door opening for getting into and out of the vehicle. Wide range of arms At Cascos, we provide a wide variety of arms for our lifts. It is possible to choose between symmetrical (4 arms the same, double or triple), or asymmetrical (2 double arms + 2 triple arms) lifts.

VIDEO
