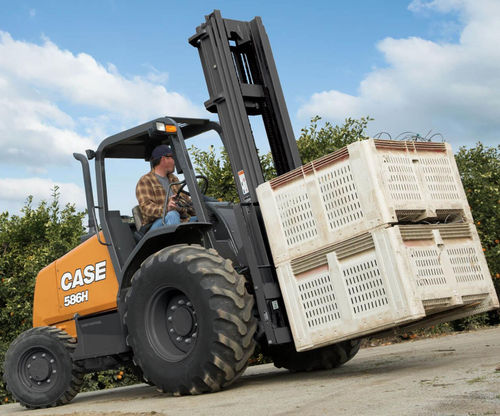

Diesel forklift 586H

ride-onexterior4-wheel

Overview
CASE 586H rough terrain forklift is engineered to lift heavy loads on uneven ground with stability, speed and simple operation. With a rated lift capacity of 6,000 lb (2,722 kg) and 74 hp (55 kW) engine output, it delivers two full lift/load cycles in under a minute and road speeds up to 24 mph (38.6 km/h). Zero tailswing and proven load control improve maneuverability and load handling in confined or rough jobsite conditions.

Walkaround / Highlight
Pallets, pipe or material handling — the CASE 586H provides fast lift speeds, on-the-go electric 4WD control and operator comfort options (open-air canopy or factory-built cab) to keep productivity moving across challenging terrain.

Quick specifications

• Horsepower: 74 hp | 55 kW
• Lift Capacity: 6,000 lb | 2,722 kg
• Road speed: up to 24 mph | 38.6 km/h

Standard Equipment
ENGINE

• FPT 3.4 L Diesel
• Cooled EGR
• Diesel Oxidation Catalyst

MAST

• 15 ft standard mast
• 22 ft standard mast

DRIVETRAIN

• 4F-4R power shuttle synchromesh transmission
• Torque converter
• On-the-go electric 4WD control
• Electric F/R shuttle control
• Electric differential lock control with push-button activation

HYDRAULICS

• Heavy-duty hydraulic oil cooler
• 7 micron spin-on oil filter

OPERATOR ENVIRONMENT

• ROPS/FOPS certified protective canopy
• Wide walk-through platform
• Vinyl seat

OTHER

• Lockable storage compartment
• Swing-out side panel engine access
• Light package:
  • 2 front halogen driving lights
  • 2 rear halogen work lights
  • 1 rear tail/stop light
  • 2 front turn signals
  • 2 rear turn signals

Optional Equipment
MASTS / FORKS / CARRIAGE

• 15 ft standard mast
• 22 ft standard mast
• 48 in pallet forks, ITA Class 3 hook type
• 48 in pallet forks, shaft type
• 60 in backrest
• Other mast/fork/carriage combinations available via special feature

HYDRAULICS

• 4-section valve for auxiliary hydraulics

OPERATOR ENVIRONMENT

• Load control
• Deluxe suspension seat with lumbar support and extended adjustments

OTHER

• SiteWatch telematics

Warranty

• BASE & EXTENDED WARRANTY COVERAGE
• 1-Year / Unlimited-Hour full-coverage base limited warranty
• 2-Year / 2,000-Hour extended engine warranty
• Engine warranty covers internal lubricated parts between valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump
• Drive train warranty covers major drivetrain components including final drives, axles, couplings, drive shafts, hydraulic drive motors/pumps and transmission components

Technical specifications

• Model: 586H
• Engine: FPT 3.4 L Diesel; Cooled EGR; Diesel Oxidation Catalyst
• Power: 74 hp | 55 kW
• Lift capacity: 6,000 lb | 2,722 kg
• Mast options: 15 ft (standard), 22 ft (standard)
• Transmission: 4F-4R power shuttle synchromesh; torque converter
• Drivetrain features: On-the-go electric 4WD control; electric F/R shuttle control; electric differential lock control (push-button)
• Hydraulics: Heavy-duty oil cooler; 7 micron spin-on filter; optional 4-section valve for auxiliary hydraulics
• Operator environment: ROPS/FOPS canopy or factory-built cab; wide walk-through platform; vinyl seat; optional deluxe suspension seat with lumbar support
• Road speed: up to 24 mph | 38.6 km/h
• Other features: Zero tailswing; lockable storage compartment; swing-out engine access panel; optional light package
