Characteristics

Function: lifting

Description

Product Overview
Move and stack large square or round bales with a quick-attach bale spear designed for efficient handling on a variety of loader platforms.

Available Configurations

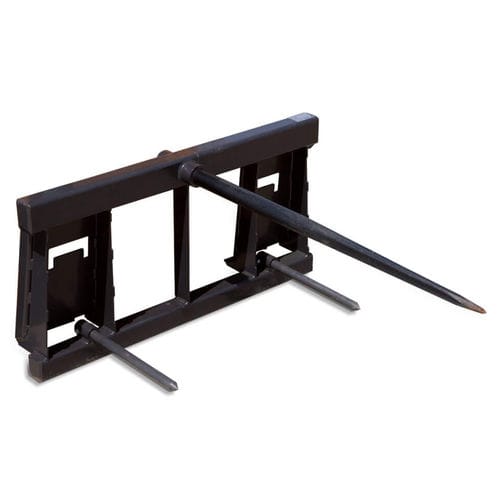

SINGLE TINE STANDARD DUTY
- For bales up to 2,000 lbs @ 24 in load center
- Main spear – single tapered, forged, 1-1/4 in diameter × 44 in
- Stabilizer spikes – dual 1-1/4 in diameter × 19 in
SINGLE TINE HEAVY-DUTY
- For bales up to 3,000 lbs @ 24 in load center
- Main spear – single tapered, forged, 2-1/8 in diameter × 49 in
- Stabilizer spikes – dual 1-1/4 in diameter × 19 in
DUAL TINE HEAVY-DUTY
- For bales up to 4,000 lbs @ 24 in load center
- Main spears – dual tapered, forged, 2-1/8 in diameter × 49 in
- Stabilizer spike – single 1-1/4 in diameter × 19 in
THREE TINE BALE SPEARS
- For bales up to 4,000 lbs @ 24 in load center
- Main spears – three tapered, forged, 1-3/4 in diameter
- Available with 27 in or 44 in length spears
SQUARE BALE SPEARS
- Configuration: 32 in x 3
- 32 in tine load rating: 1,795 lbs
- Plug & Play Ready: Includes universal mounting plate
ROUND BALE SPEAR
- 32 in tine load rating: 1,795 lbs
- 48 in tine load rating: 3,485 lbs
- Plug & Play Ready: Includes universal mounting plate

Applications / Compatible Machines

Designed for use on skid steer and compact track loaders, compact wheel loaders, and backhoe/tractor loaders (compatibility varies by configuration and machine)

Technical specifications

SINGLE TINE STANDARD DUTY: capacity up to 2,000 lbs @ 24 in load center; main spear 1-1/4 in dia × 44 in; stabilizer spikes dual 1-1/4 in dia × 19 in
SINGLE TINE HEAVY-DUTY: capacity up to 3,000 lbs @ 24 in load center; main spear 2-1/8 in dia × 49 in; stabilizer spikes dual 1-1/4 in dia × 19 in
DUAL TINE HEAVY-DUTY: capacity up to 4,000 lbs @ 24 in load center; main spears dual 2-1/8 in dia × 49 in; stabilizer spike single 1-1/4 in dia × 19 in
THREE TINE BALE SPEARS: capacity up to 4,000 lbs @ 24 in load center; main spears three tapered forged 1-3/4 in dia; offered in 27 in or 44 in lengths
SQUARE BALE SPEARS: configuration 32 in x 3; 32 in tine load rating 1,795 lbs; includes universal mounting plate
ROUND BALE SPEAR: available tine lengths (32 in, 48 in) with corresponding tine load ratings 1,795 lbs (32 in) and 3,485 lbs (48 in); includes universal mounting plate
Mounting: Plug & Play ready on configurations that include the universal mounting plate (check machine compatibility)
