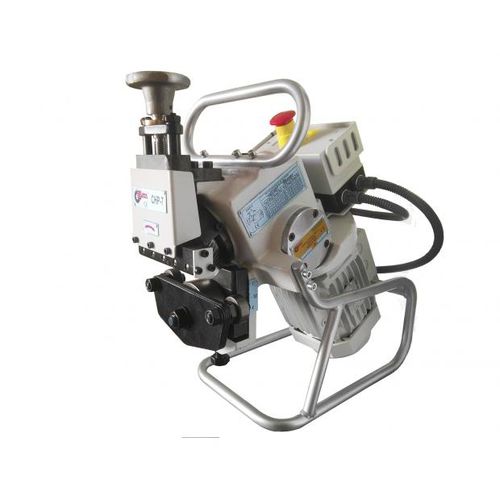

Electric chamfering machine CHP 7

portableplate

The beveller CHP 7 bevels large plates, small sheets, pipes & tubes with small thicknesses. Totally self-feed, the beveling machine CHP 7 will meet all your bevel requirements, especially for thin materials, from 4 mm to 8 mm thick and also for aluminum. High speed beveling guaranteed: 1.6 m/min. Portable, easy to handle and fast, the CHP 7 is the option for all industries that are looking for better results & performance in time saving andfaster production. Benefits of standard shearing cutting bevelling machine CHP 7 - Easy-to-use whatever work machine position - Functional for workshop and construction on-site, 1.7m/min bevel speed - Flexible and efficient bevel system - Recommended for bevelling aluminum Performances - Maximum bevel in one run: 6 mm* - Maximum bevel recommended in several runs: 10mm* - Maximum recommended thickness: plates and tubes up to 8 mm. - Nominal thickness : plates and tubes from 3 mm to 16 mm. - Double bevel with 2 machines working in parallel: CHP 12 + CHP12 INV. - Plate bevelling: width min. 55 mm (for smaller width, please consult). - Tube bevelling: Ø min. int.100 mm. - Disc bevelling: Ø min. 350 mm. * Dimensions calculated on 400 Mpa steel, bevel length.
