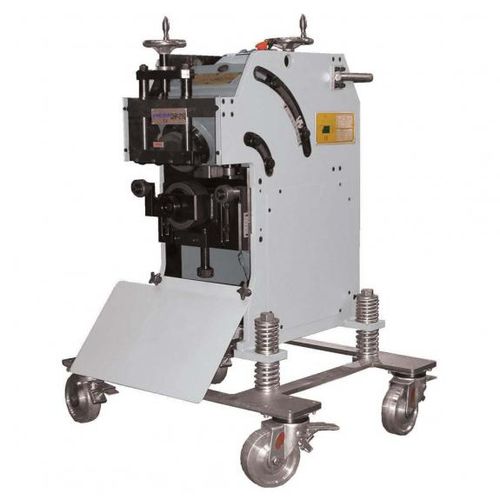

Electric chamfering machine CHP-21G

mobilesheet metalplate

The CHP-21G model is a self-feed high capacity beveling machine, specially designed for unstoppable production processes, 24H work. Extremely resistant, robust and reliable, this machine will meet all your requirements: automatic and secure, without control process while beveling, for any bevel angle. Built to operate at maximum capacity providing high quality bevels whilst maintaining the optimum position for plates/machine, eliminating wasted time and costs throughout the entire sheet metal welding preparation process. Faster work processes and more precise results. Benefits of adjustable shearing cutting bevelling machine CHP-21G All-purpose tool:one cutter suitable for any all materials High performance: bevel speed + bevel depth / min. All-in-1: wide range of bevel depth, adjustable angles, built-in trolley, self-feed Robustness: reliable, efficient, recommended for 24H services Secure: self-monitoring bevel Easy to set-up and operate. Performances Maximum bevel in one run: 20 mm* Maximum bevel recommended in several runs: 28 mm* Maximum recommended thickness: plates and tubes up to 40 mm Nominal thickness: plates and tubes from 9 mm to 50 mm Tube bevelling: Ø min. int.100 mm Disc bevelling: Ø min. 350 mm * Dimensions calculated on 400 Mpa steel, bevel length Bevel blueprint Plate bevelling: K, V, X and Y bevels Pipe bevelling: vertical or horizontal position – K, V, X and Y bevels, on the inside or the outside of the tube (depending on diameters). Bevel speed: 1.7 m/ min. Specifications Motor: three-phase Voltage: 220/380 V. 50 Hz 250/440 V. 60 Hz For other voltages, please consult us.
