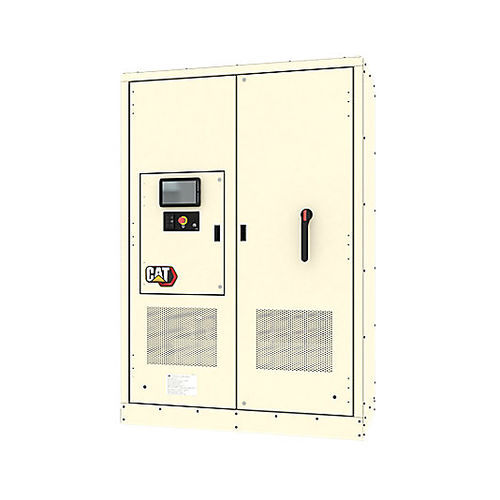

Parallel inverter BDP1000

off-gridon-gridcurrent

The Cat® BDP1000 is a high performance inverter that provides reliable control of the Energy Storage System (ESS). Integrated controls provide complete control of the charge and discharge of the ESS. Benefits Ultra-fast 5-30 milisecond Mode Transfer Switches between Grid Forming/Firming/Following modes for off-grid and on-grid operation Seamless Transition ~0.6 Sec between Charging & Discharging Provides rapid response to dynamic system conditions Up to 2 per unit Fault Current Capability Contributes to robust system operation Features At A Glance Higher Efficiency Peak efficiency 98% (excluding isolation transformer) Energy Storage Management Built-in controls for the charging and discharging of the energy storage equipment. Static VAR compensator. Four-quadrant output power factor control. Automatic anti-islanding to meet UL 1741 and synchronization back to grid. Parallel ready plug-and-play paralleling with other power sources. Grid Support Ancillary services to grid (voltage/power factor, frequency support) Multi-mode operation Grid forming Grid firming Grid following Seamless mode transfer Islanding detection Autonomous mode or remote-control mode High Performance Inverter Patented Non-Linear droop for tight control of frequency and voltage enables high power quality on high transient loads. High Overload capability 1.5x. 2 per unit fault current capability Fuel Consumption Integrated control of generating system which minimizes fuel consumption and emissions by: Enabling highly-efficient lean-burn gas gensets to operate in island mode And enabling the shutdown of one or more gensets for fuel savings.
