Wall enclosure

panelmodularpolyester

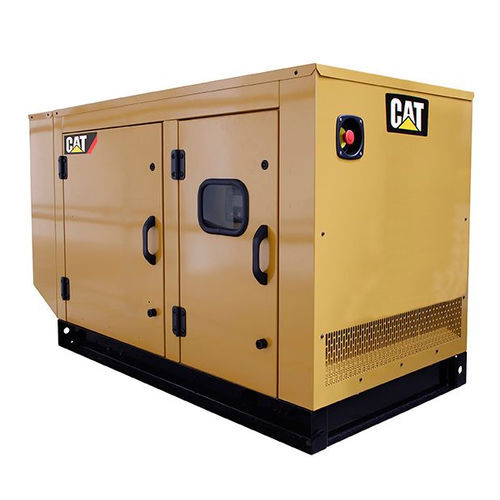

The compact design of the 6.8 – 22 kVA SA Level 1, Level 2 and Level 3 enclosures range provides the flexibility of optimum sound attenuation depending on requirements. Designed on modular principles, the enclosures will have lift off doors or vertically hinged doors providing optimal service and maintenance access. Features At A Glance Robust/Highly Corrosion Resistant Construction Factory installed on integral fuel tank base Environmentally friendly, polyester powder baked paint 1.6 mm (0.063 in) galvanized steel All around overhanging base to protect enclosure High-grade engineering thermoplastic corner posts for protection Compression door latches giving solid door seal Zinc plated or black coated stainless steel fasteners Internally mounted residential exhaust silencing system Excellent Access Large cable entry area for installation ease Accommodates rear mounted breaker and control panel Double doors on both sides Vertically hinged doors with solid bar door tays to hold doors open at 135° rotatio Lube oil and coolant drains pipes to exterior of enclosure and terminated drain valve Radiator fill cover Security And Safety Lockable access doors which give full access to control panel and breaker Cooling fan and battery charging alternator fully guarded Fuel fill, oil fill and battery can only be reached via lockable access Externally mounted emergency stop button Designed for spreader-bar lifting to ensure safety Control panel viewing window Stub-up area is rodent proof Options Cat® yellow or white paint Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)
