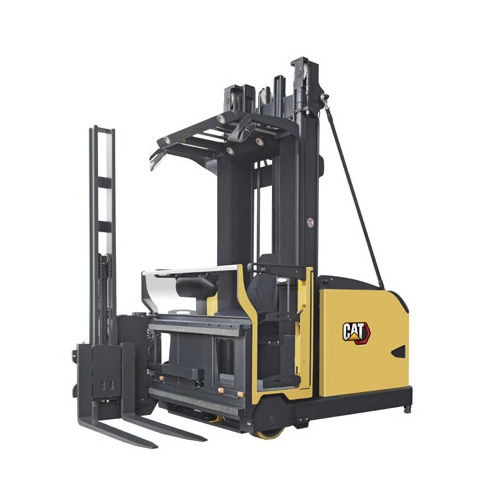

Battery-powered turret truck NVT11-20(XL)
ride-onfor very narrow aislesfor warehouse

Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse - image - 2
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse - image - 3
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse - image - 4
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse - image - 5
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse - image - 6
Battery-powered turret truck - NVT11-20(XL) - Cat Lift Trucks - ride-on / for very narrow aisles / for warehouse - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
battery-powered
Operator
ride-on
Applications
for warehouse, order-picking, for very narrow aisles
Other characteristics
custom
Carrying capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 1,100 kg
(2,425.1 lb)

Lifting height

Max.: 16,550 mm
(651.57 in)

Min.: 4,400 mm
(173.23 in)

Overall width

Max.: 1,900 mm
(74.8 in)

Min.: 1,000 mm
(39.4 in)

Overall length

Max.: 9,400 mm
(370.1 in)

Min.: 4,900 mm
(192.9 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Max.: 9,400 kg
(20,723.5 lb)

Min.: 4,900 kg
(10,802.7 lb)

Height to top of overhead guard

Max.: 16,770 mm
(660.2 in)

Min.: 5,020 mm
(197.6 in)

Ground clearance at center of wheelbase with load

40 mm
(1.6 in)

Turning circle radius

Max.: 2,445 mm
(96.3 in)

Min.: 2,080 mm
(81.9 in)

Travel speed

12 km/h
(7.5 mph)

Lifting speed

Max.: 0.56 m/s
(1.837 ft/s)

Min.: 0.31 m/s
(1.017 ft/s)

Lowering speed

0.45 m/s
(1.476 ft/s)

Rated output

5 kW, 7 kW
(6.8 hp, 9.5 hp)

Description

Cat® NVT man-up turret trucks are perfect for stacking and order picking in very narrow aisles (VNA) and high racking. Each is fully customised for a precise fit with your warehouse space and the needs of your loads and operators. Superior ergonomics and comfort make operation a pleasure, while powerful performance and low running costs boost profits. There are five core models with capacities between 1.1 and 1.5 tonnes: NVT11, NVT12, NVT13, NVT14 and NVT15. Two others can be specially requested: NVT20 for unusually heavy loads (up to 2.0 tonnes) and NVT15XL for exceptionally high lifts (up to 19 metres). The list of options available is very extensive. Examples range from guidance by rail or inductive wire, through systems for weighing, height positioning and speed control, to cabin heating, fans and window combinations. Advanced options like tilting side gates and a tilting control pod make picking operations easier and more productive, while the all-round camera system, active tilting system and semi-automation can improve safety, productivity and accuracy. Your local Cat lift truck dealer can provide full details.
