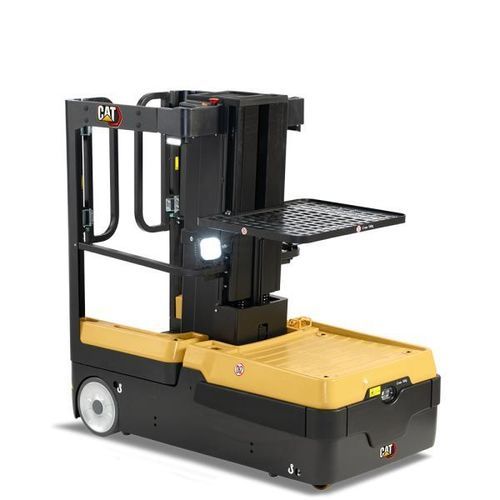

High-level order-picker MNO038Q2

electricfor warehousemobile

Overview Mini order picker — a safer way to climb and a quicker way to pick. Once you’ve tried the MNO038Q2, you’ll wonder how you managed without one. It is not only an order picker but also replaces use of ladders while improving safety and efficiency. Highly compact and manoeuvrable, suitable for light to medium order picking in warehouses, stores and retail environments. MNO038Q2 combines compact dimensions with extended lift capability.

Lower cost of ownership

• Robust, high-quality construction ensures reliable operation and reduces servicing and repair requirements.
• AC drive motor provides long service life with low maintenance.
• 24V/106Ah Li-ion battery delivers long runtime, improved efficiency and eliminates the need for water top-ups or regular cell maintenance.
• On-board display shows fault warnings to enable timely corrective action.
• PIN-code access and keyless start supported by RFID tags prevent unauthorised use and streamline operator access.

Productivity

• Compact, stable design enables fast and safe picking with excellent manoeuvrability.
• Small footprint (750 mm width) combined with a tight turning radius (1300 mm) allows operation in narrow aisles.
• Low collapsed mast height (1454 mm) facilitates passage through standard doorways.
• Platform lift up to 3.3 m provides operator reach up to 5 m for high-level picking tasks.
• Side light improves visibility when picking or placing goods in low-light areas.
• 24V/106Ah high-capacity Li-ion battery supports long runtime between charges.
• Li-ion technology enables opportunity charging during short breaks for continuous operation.
• Advanced battery management system (BMS) optimises power delivery, battery life and safety.

Safety

• Low step-in height simplifies platform entry and exit.
• Electrically adjustable loading tray improves forward visibility and convenience.
• Solid mast and stable chassis ensure safe handling of loads at full lift height.
• Safety gates prevent operator falls from the platform.
• Automatic gate lock inhibits lifting and travel when gates are open.
• Automatic speed reduction by height: 5.5 km/h at 0–500 mm; 3.2 km/h at 500–1500 mm; 1.4 km/h at 1500–3318 mm.
• Left and right multi-function handles allow simultaneous control of acceleration, lift/lower and steering.
• Blue floor light, amber warning light and reversing buzzer alert pedestrians and other operators.
• Li-ion battery chemistry eliminates risks of hazardous gas or acid leakage.

Technical specifications

• Model: MNO038Q2
• Rated capacity: 0.4 tonnes (400 kg)
• Specification extract: Model | Capacity (kg) | Load Centre (mm) | Engine MNO038Q2 | 100 + 150 + 130 | | Electric
• Footprint width: 750 mm
• Turning radius: 1300 mm
• Height with mast collapsed: 1454 mm
• Platform lift: up to 3.3 m (operator reach up to 5 m)
• Battery: 24V / 106Ah Li-ion with BMS
• Drive: AC drive motor
• Security: PIN code access/keyless start with RFID, automatic gate lock, height-related speed reduction
