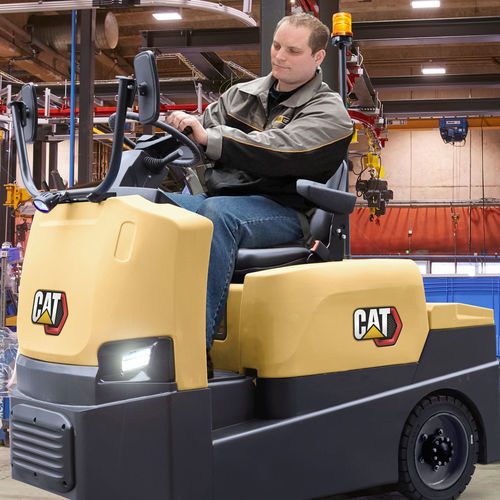

Vehicle electric tugger-pusher NTS series

for the aeronautical industryfor heavy-duty applicationsbattery-powered

Overview
Long distances, heavy loads and rough conditions are no problem for the NTS30-60Q2 tow tractors. These compact electric tow tractors rapidly transport loads of 3.0 or 6.0 tonnes and are engineered for both indoor and outdoor use in busy industrial environments such as airports, stations, warehouses, workshops and factories. Operator comfort supports long shifts and extensive travel.

Lower cost of ownership

• Robust, high-quality construction for long service life with minimal servicing and repair requirements.
• AC drive motor and controller designed for low maintenance and extended operation.
• Li-ion battery options deliver long lifespan, high efficiency and extended runtime without water top-ups.
• Onboard display shows fault warnings for timely maintenance actions.
• Optional PIN code access prevents unauthorised use.

Productivity

• Compact footprint for easy manoeuvring in narrow and congested areas.
• Coasting button enables fine adjustment of truck movements for precise control and reduced collision risk.
• AC drive system provides high-powered, smooth and responsive operation.
• High-capacity Li-ion battery: 51.2V/206Ah (3.0 t) and 51.2V/277Ah (6.0 t) for long runtime between charges.
• Li-ion technology supports continuous operation with fast opportunity charging during short breaks.
• Advanced Battery Management System (BMS) optimises power, lifetime and safety.
• Battery Discharge Indicator (BDI) helps schedule charging or battery changes at optimal times.
• Coupler with three height settings ensures reliable connection to various trailers.
• Trailer power access unit provides electrical supply to towed equipment.

Safety

• Comfortable seat and spacious operator area reduce driver fatigue during long distances and shifts.
• Optional armrest for additional comfort.
• Low-effort steering wheel to minimise strain.
• Standard lighting: front and rear work lights, flashing amber beacon and blue floor spot for enhanced visibility.
• Optional warning light to alert pedestrians and other vehicle operators.
• Rear mirrors for improved all-round visibility.
• Li-ion battery chemistry eliminates risks of hazardous gas or acid leaks.

Specifications (table)
Model | Capacity (kg) | Load Centre (mm) | Engine
NTS30Q2 | 3000 | - | Electric
NTS60Q2 | 6000 | - | Electric

Technical characteristics

• Commercial designation: NTS30-60Q2
• Capacity range: 3.0 - 6.0 tonnes (3000 kg and 6000 kg variants)
• Drive: Electric (AC drive motor and controller)
• Battery: Li-ion technology; typical options 51.2V/206Ah (3.0 t) and 51.2V/277Ah (6.0 t)
• Advanced BMS and Battery Discharge Indicator (BDI)
• Coupler with three height settings and trailer power access unit
• Operator environment: comfortable seat, spacious area, optional armrest, low-effort steering
• Lighting & visibility: front/rear work lights, flashing amber beacon, blue floor spot, optional warning light, rear mirrors
• Designed for indoor and outdoor operation in airports, stations, warehouses, workshops and factories
• Robust construction for heavy-duty, long-life operation with minimal servicing
• Security: optional PIN code access
