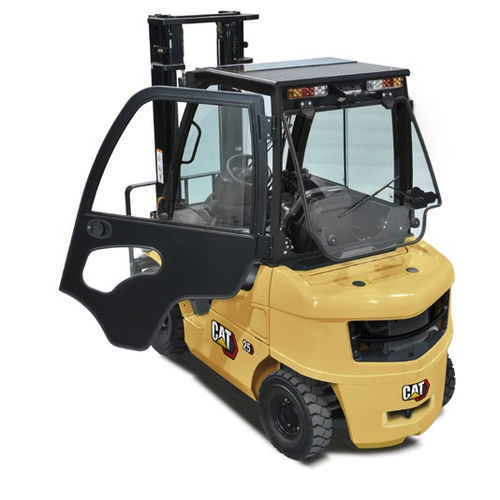

Counterbalanced forklift DP20-35N3
dieselride-onindustrial

counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial
Other characteristics
4-wheel, counterbalanced, compact, pneumatic tire
Carrying capacity

2,000 kg, 2,500 kg, 3,000 kg, 3,500 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

Max.: 7,000 mm
(275.59 in)

Min.: 3,000 mm
(118.11 in)

Overall width

1,150 mm, 1,275 mm, 1,290 mm, 1,640 mm, 1,690 mm
(45.3 in, 50.2 in, 50.8 in, 64.6 in, 66.5 in)

Overall length

3,555 mm, 3,630 mm, 3,805 mm, 3,865 mm
(140 in, 142.9 in, 149.8 in, 152.2 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,460 kg, 3,760 kg, 4,430 kg, 4,820 kg
(7,628 lb, 8,289.4 lb, 9,766.5 lb, 10,626.3 lb)

Axle loading with maximum load front

4,670 kg, 5,460 kg, 6,530 kg, 7,240 kg
(10,295.6 lb, 12,037.2 lb, 14,396.2 lb, 15,961.5 lb)

Axle loading with maximum load rear

790 kg, 800 kg, 900 kg, 1,080 kg
(1,741.7 lb, 1,763.7 lb, 1,984.2 lb, 2,381 lb)

Axle loading without load front

1,460 kg, 1,470 kg, 1,700 kg, 1,780 kg
(3,218.7 lb, 3,240.8 lb, 3,747.9 lb, 3,924.2 lb)

Axle loading without load rear

1,990 kg, 2,300 kg, 2,650 kg, 3,120 kg
(4,387.2 lb, 5,070.6 lb, 5,842.2 lb, 6,878.4 lb)

Track width front

960 mm, 1,060 mm
(37.8 in, 41.7 in)

Track width rear

980 mm
(38.6 in)

Height of mast when lowered

2,150 mm, 2,170 mm, 2,300 mm
(84.6 in, 85.4 in, 90.6 in)

Free lift

140 mm, 145 mm
(5.5 in, 5.7 in)

Overall height with mast raised

4,355 mm
(171.5 in)

Height to top of overhead guard

2,145 mm, 2,165 mm, 2,175 mm
(84.4 in, 85.2 in, 85.6 in)

Seat height

940 mm, 990 mm
(37 in, 39 in)

Tow couplig height

310 mm, 330 mm, 340 mm
(12.2 in, 13 in, 13.4 in)

Length to fork face

2,485 mm, 2,560 mm, 2,735 mm, 2,795 mm
(97.8 in, 100.8 in, 107.7 in, 110 in)

Fork carriage width

1,000 mm
(39.4 in)

Ground clearance under mast with load

115 mm, 135 mm, 150 mm
(4.5 in, 5.3 in, 5.9 in)

Ground clearance at center of wheelbase with load

135 mm, 165 mm, 170 mm
(5.3 in, 6.5 in, 6.7 in)

Turning circle radius

2,200 mm, 2,230 mm, 2,380 mm, 2,440 mm
(86.6 in, 87.8 in, 93.7 in, 96.1 in)

Minimum distance between centres of rotation

715 mm, 780 mm
(28.1 in, 30.7 in)

Travel speed

16 km/h, 16.5 km/h, 17 km/h, 17.5 km/h, 18 km/h
(9.9 mph, 10.3 mph, 10.6 mph, 10.9 mph, 11.2 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Max.: 16,200 N

Min.: 14,800 N

Rated output

36 kW
(48.9 hp)

Rated speed

1,800 rpm
(11,309.7 rad.min-1)

Cubic capacity

3,331 cm³
(112.6 US fl oz)

Maximum operating pressure

180 bar
(2,610.7 psi)

Oil flow

75 l/min
(19.8 us gal/min)

Noise level

78 dB

Description

Compact diesel forklifts built with durability in mind Regardless of the application expectation, these compact diesel forklift models have deservedly acquired a name synonymous with durability Ideal for industrial applications, the 2.0-3.5 tonnes diesel forklift trucks achieve outstanding traction on sloping or slippery surfaces, with solid pneumatic tyres providing excellent operator comfort. A built-in warning system and easy maintenance procedures help to keep your truck in service and your costs to a minimum. The 2.0-3.5 tonnes diesel powered forklift models are equipped with powerful, industrial strength, dependable and easy to service diesel engines with low emissions and fuel consumption. Modern design techniques in combination with long component life result in a long service interval which reduces total cost of ownership. Vehicle Control Module manages various truck and operator functions, allowing easy troubleshooting and pinpointing of problems. LCD display provides extensive information on truck operation, maintenance state and soot level (diesel) - with indication of service requirements to prevent unexpected downtime and costs due to unscheduled servicing and repairs. LED front work lights and front/rear combination lights reduce energy consumption and maintenance costs. Robust and durable chassis is fitted with full belly guard to protect engine compartment from dust, water and dirt.
