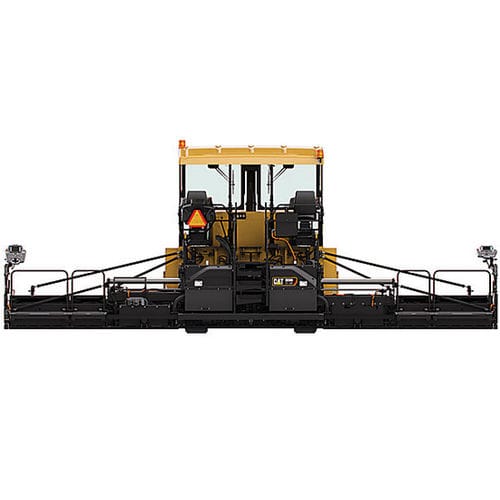

Paver screed SE60 VT XW

SE60 VT XW TAMPER BAR SCREED STANDARD WEIGHT 9898 LB STANDARD PAVING RANGE 3 M - 6 M (10' - 19' 6") MAXIMUM PAVING WIDTH 33 FT OVERVIEW The SE60 VT XW delivers extremely tight mat textures with high densities. It utilizes rear-mounted extenders, tamper bars, vibratory screed plates and has a paving range of 3.0 m to 10.0 m (9' 10" - 33'). It excels on interstates, highways, airport runways and other wide-width applications. OPERATING SPECIFICATIONS Standard Paving Range3 m - 6 m (10' - 19' 6") Maximum Paving Width33 ft Maximum Paving Depth12 in Extender Slope Range-3% to +5% Tamper Speed Range700 to 1800 rpm Vibrator Speed Range0 - 3000 vpm Crown Range-2% to +5% per side Heating Time - Standard Width15 minutes Heating Time - Maximum Width25 minutes DIMENSIONS Screed Plate Width - Front to Back16 in Transport Length - Tractor and Screed22.6 ft Transport Width - Endgates Folded9.85 ft Length - Front to Back, Endgates Attached98 in Length - Front to Back, Endgates Removed76 in
