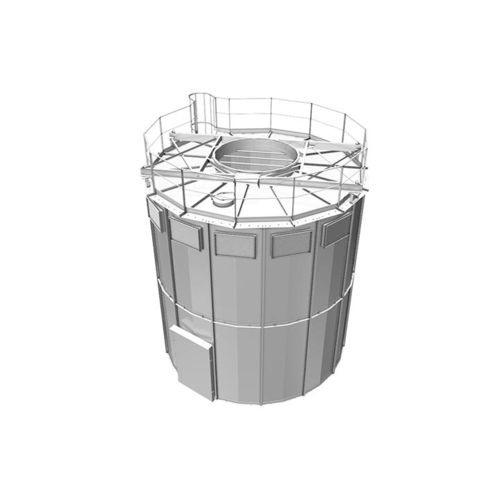

Cylindrical-conical silo industrialpowdergalvanised steel
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical-conical
- Product applications
- industrial, powder
- Material
- galvanised steel
- Capacity
Max.: 950 m³
(33,548.9 ft³)Min.: 80 m³
(2,825.2 ft³)
Description
For storing powdered materials.
Fitted with explosion vents (ATEX), tested by INERIS (French National Institute for Study of Industrial Environments and Risks) to prevent the risk of explosion.
Fitted (or not) with extraction systems, access, level control, etc.
Galvanised sheet steel S235 with external coating of RAL 1013 thermosetting paint.
Robust construction, self-supporting and removable, it can withstand large loads.
Easy to access thanks to a technical trap.
Possibility of installation on concrete slab or on metal structure.
Central feed for good material distribution.
