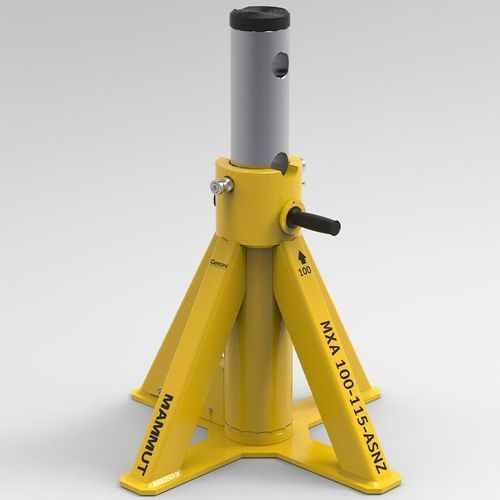

Pin axle stand MXA-100-115-ASNZ

100 tonautomotive

Product Details

• The MXA-100-115-ASNZ Axle Stand is designed to support up to 100 tons of load after lifting.
• Fast and efficient pneumatic height adjustment. Requires connection to compressed air (4-12 bar).

Technical data
Capacity: 100 t
110 ton
Net weight: 160 Kg
359 lb
Min. height: 700 mm
27.5 inch
Max. height: 1150 mm
45.3 inch
Positions: 5
Air requirement: 4-12 bar
58-174 psi

Other Features

• 1 Year Warranty
• After Sales Service: Authorised assistance service centers worldwide
• Spare Parts: Global delivery in 24-48 hours
• 100% Made in Italy: Engineered, produced and tested at the facility in Gattatico, Italy

Characteristics / Technical Specifications

• Product type: Mining Jack Stand
• Series: MAMMUT
• Model: MXA-100-115-ASNZ
• Capacity: 100 t (110 ton)
• Net weight: 160 Kg (359 lb)
• Minimum height: 700 mm (27.5 inch)
• Maximum height: 1150 mm (45.3 inch)
• Height adjustment: Pneumatic, 5 positions
• Air requirement: 4-12 bar (58-174 psi)
