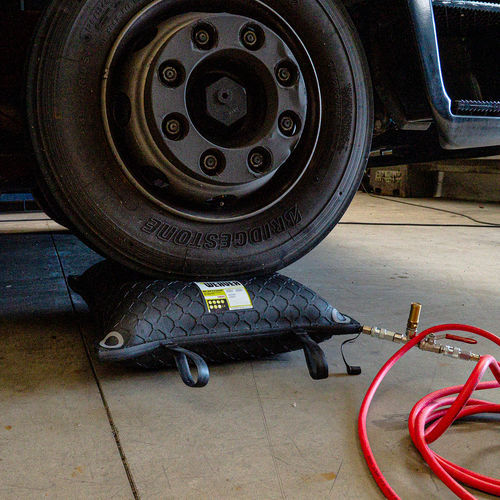

Heavy load lifting bag WLB series

Product name
Lifting Bags

Overview
Our lifting bags are designed for maximum efficiency and safety and range from compact models for precision work to powerful options for lifting heavy loads. Find the ideal solution for your needs.

Round Lifting Bags - Technical table
Product code | Capacity | Max. height | Air volume | Size | Net weight
WLB001R08 | 1 t / 1.1 ton | 75 mm / 2.95 in | 0.96 L | 140 x 140 x 23 mm / 5.51 x 5.51 x 0.9 in | 0.4 kg / 0.8 lb
WLB003R08 | 3 t / 3.3 ton | 100 mm / 3.93 in | 5.16 L | 200 x 260 x 23 mm / 7.87 x 10.23 x 0.9 in | 1 kg / 2.2 lb
WLB006R08 | 6 t / 6.6 ton | 170 mm / 6.69 in | 13.3 L | 300 x 300 x 23 mm / 11.81 x 11.81 x 0.9 in | 2 kg / 4.4 lb
WLB010R08 | 10 t / 11 ton | 210 mm / 8.26 in | 28.3 L | 380 x 380 x 23 mm / 14.96 x 14.96 x 0.9 in | 3.8 kg / 8.3 lb
WLB018R08 | 18 t / 19.8 ton | 290 mm / 11.41 in | 66 L | 500 x 500 x 23 mm / 19.68 x 19.68 x 0.9 in | 6.4 kg / 14 lb
WLB027R08 | 27 t / 29.7 ton | 360 mm / 14.17 in | 126.6 L | 600 x 600 x 25 mm / 23.62 x 23.62 x 0.98 in | 9.8 kg / 21.6 lb
WLB037R08 | 37 t / 40.7 ton | 420 mm / 16.53 in | 210 L | 700 x 700 x 25 mm / 27.55 x 27.55 x 0.98 in | 13.5 kg / 29.7 lb
WLB048R08 | 48 t / 52.9 ton | 470 mm / 18.5 in | 315 L | 800 x 800 x 25 mm / 31.49 x 31.49 x 0.98 in | 17.8 kg / 39.2 lb
WLB062R08 | 62 t / 68.3 ton | 500 mm / 19.68 in | 483.3 L | 900 x 900 x 25 mm / 35.43 x 35.43 x 0.98 in | 21 kg / 46.2 lb
WLB076R08 | 76 t / 83.7 ton | 590 mm / 23.22 in | 526.6 L | 1000 x 1000 x 25 mm / 39.37 x 39.37 x 0.98 in | 24.5 kg / 54 lb

Flat Lifting Bags - Technical table
Product code | Capacity | Max. height | Air volume | Size | Net weight
WLB023F08 | 23 t / 25.3 ton | 220 mm / 8.66 in | 126 L | 600 x 600 x 25 mm / 23.62 x 23.62 x 0.98 in | 9.8 kg / 21.6 lb
WLB033F08 | 33 t / 36.3 ton | 220 mm / 8.66 in | 190 L | 700 x 700 x 25 mm / 27.55 x 27.55 x 0.98 in | 15.5 kg / 34.1 lb
WLB048F08 | 48 t / 52.9 ton | 220 mm / 8.66 in | 210 L | 800 x 800 x 25 mm / 31.49 x 31.49 x 0.98 in | 17.8 kg / 39.2 lb
WLB062F08 | 62 t / 68.3 ton | 220 mm / 8.66 in | 330 L | 900 x 900 x 25 mm / 35.43 x 35.43 x 0.98 in | 21 kg / 46.2 lb
WLB072F08 | 72 t / 79.3 ton | 220 mm / 8.66 in | 370 L | 1000 x 1000 x 25 mm / 39.37 x 39.37 x 0.98 in | 24.5 kg / 54 lb

Features

• Excellent performance
• User-friendly
• Strong: made with high-quality compounds with aramid reinforcement
• Light: the largest one (1000 x 1000 mm, 76 t) weighs only 24 kg
• Low maintenance
• Safe: each lifting bag is tested before shipping
• CE marking
• Standard EN 13731: 2007
• Made in Europe
• Low profile: 23-25 mm thickness

Technical specifications

• Capacity range: from 1 t up to 76 t (multiple models listed above)
• Profiles available: Round and Flat types with specified max. heights and air volumes
• Material: reinforced high-quality compounds with aramid reinforcement for strength and durability
• Thickness (low profile): typically 23–25 mm depending on model
• Air volumes and maximum heights listed per model in tables above (values in L and mm / in)
• Net weight provided per model (kg and lb)
• Standards and compliance: CE marked; conforms to EN 13731:2007
• Tested individually prior to shipment
• Manufactured in Europe
