Characteristics

  • Type:

    mechanical

Description

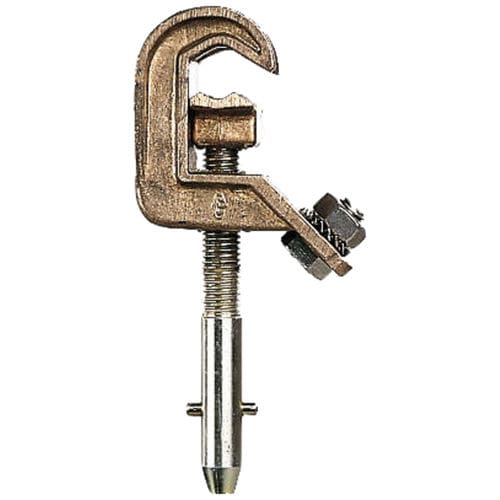

CLAMP with insulating Handle
For Fixed Points
Serial MT-1911 and MT-1921

Different models availables for 20, 30 and 40 kA/1s

FIELD of USE

Clamp for mounting on fixed points Ø 20 and 30 mm.
Clamp also suitable for mounting on round conductor Ø 5 to 25 mm and flats up to 25 mm.
Earthing and short-circuiting product in accordance with IEC / EN 61230 standard.

CHARACTERISTICS

•Body in copper-aluminium alloy.
•Rubber insulated handle.
•Length of the handle: 130 mm.
•Hand guard of the handle: Ø 75 mm.
•Overall maximum dimensions of the clamp body : 95 x 80 x 40 mm.
•Total length in open position: 325 mm.
•Total length in close position: 290 mm.
