Applications:

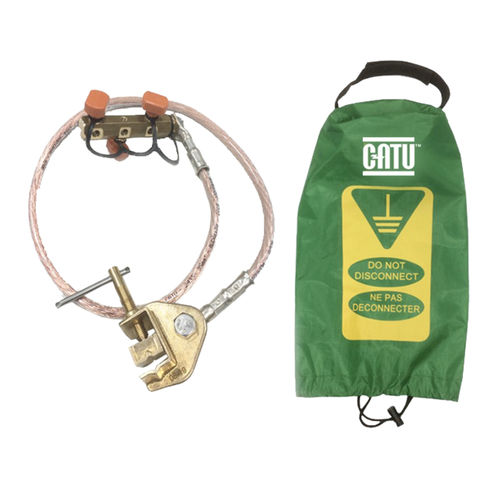

Earthing and short-circuiting equipment for industrial motors.
Unique and innovative: Finally, a solution adapted to the problems of all industrial engines.
Security: Ensures the earthing of installations during maintenance.
Easy and safe to use.
Universal: Suitable for most installations.
Allows working on cables of all sections with or without lugs.
Features:
Maximum short circuit intensity 14 000 kA / 1s.
1 body made of copper alloy.
Connection points for earthing and short-circuiting cables equipped with lug terminals and fixing hole greater than 8 mm.
Connection points for earthing and short-circuiting cables with bare ends and maximum diameter 8 mm.
1 earthing cable made of copper with extra flexible PVC insulation, cross-section 50 mm², length 2 m.
1 earthing clamp MT-8401.
1 protection cover.
