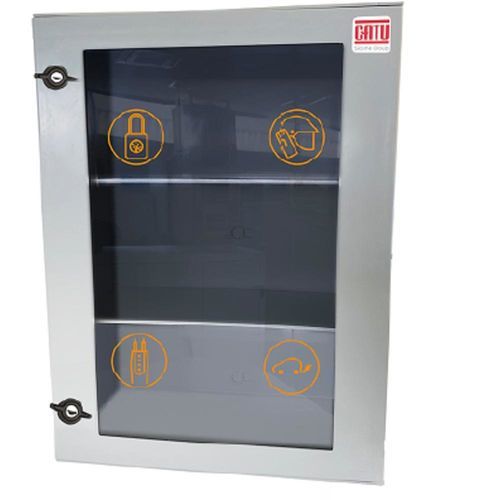

Storage cabinet CZ-58

wall-mountedwith transparent coversingle door

Summary
Storage cabinet to be equipped.

Use

• Storage: Cabinet with 2 fixed shelves for storing personal items (PPE, lockout devices, voltage testing equipment).
• Protection: Protects equipment from dust, dirt and humidity.
• Resistance and standards:
  • Impact resistance: IK10 (IEC 62262).
  • Dust/water protection: IP66 (IEC 60529).
  • Corrosion resistance: IEC 60068-2-30.
  • Material self-extinguishing: 960°C (IEC 60695-2).
• Security: Double lock with 2 keys secures your equipment.

Characteristics

• Cabinet with transparent door for visual inspection; suitable for direct wall mounting.
• Material: SMC (thermosetting polyester).

Contents

• 1 cabinet with porthole and 2 unit key locks.
• 2 fixed shelves (already installed).
• 1 instruction manual.
• 1 label kit to apply:
  • Label "Lockout"
  • Label "PPE"
  • Label "Voltage detector / VAT"
  • Label "VEH"

Reference table
Reference; Dimensions (mm); Weight (kg)
CZ-58; 785 x 595 x 310 mm; 17 kg

Technical characteristics / specifications

• Product reference: CZ-58
• Dimensions: 785 x 595 x 310 mm
• Weight: 17 kg
• Material: SMC (thermosetting polyester)
• Protection rating: IP66 (IEC 60529)
• Impact resistance: IK10 (IEC 62262)
• Corrosion resistance: compliant with IEC 60068-2-30
• Self-extinguishing temperature: 960°C (IEC 60695-2)
• Transparent door
• Closure: double with 2 keys
• Delivered contents: cabinet with porthole and locks, 2 fixed shelves, manual, label kit (Lockout, PPE, Voltage detector / VAT, VEH)
