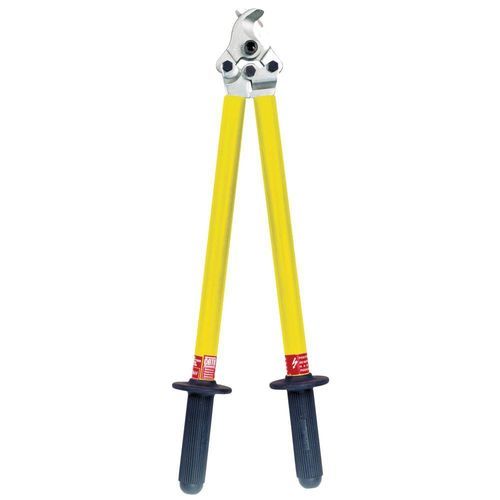

Manual shear CZ-60

for cablescopperfor wires

Description
Insulated cable cutter with long insulated handles designed for cutting power cables up to 26 mm in diameter. Forged steel blades provide clean cuts; maximum blade opening 30 mm. Nominal insulation rating: 36 kV. Overall length: 630 mm.

Application

• For cutting copper and aluminium conductors in electrical installation, maintenance and rescue operations; suitable for cables up to approx. 150 mm² (Ø 26 mm).

Additional information

• Approximate mass: 2.2 kg.

Reference table
Reference | Dimensions (mm) | Mass (kg)
CZ-60 | 610 x 190 x 70 | 2.25

Technical specifications

• Brand: CATU
• Model: CZ-60
• Type: Insulated-handle cable cutter / cable cutting shears
• Max cable diameter: 26 mm
• Approx. conductor sections: 150 mm² copper / 150 mm² aluminium
• Blade material: Forged steel
• Max blade opening: 30 mm
• Nominal insulation: 36 kV
• Overall length: 630 mm
• Product dimensions: 610 x 190 x 70 mm
• Mass: approx. 2.2 kg (table: 2.25 kg)
