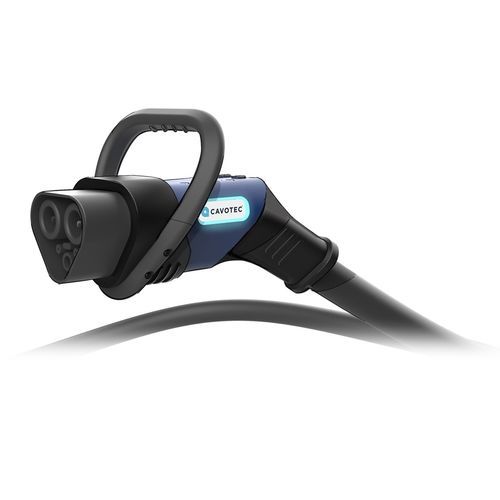

Gun electrical plug MCS

high-powerindustrialfor vehicles

Cavotec’s Megawatt Charging System (MCS) is a turnkey DC charging solution with grid-to-inlet functionality that enables the decarbonisation of industrial vehicles and vessels. MCS is a modular solution, featuring either manual or automated connection to the vehicle inlet, and providing up to 4.5MW charging power with a single MCS connector. The MCS can be used to charge all kind of heavy-duty vehicles, such as agriculture and construction vehicles, heavy-duty trucks, e-vessels, and others, wherever fast and powerful charging is needed. The system consists of: • a high-power electronic module, • an MCS connector and • an MCS inlet as a mating device located on the vehicle. With charging power of up to 4.5MW per connector, the system significantly reduces charging time and maximises uptime compared to existing Combined Charging Systems (CCS). • Three different power levels (350kW, 1MW, 4.5MW). • Active connector and cable cooling system (included in 1MW and 4.5MW chargers). • Vehicle inlet (included in the 4.5MW charger). • Specified connector size and minimum weight depending on the power level. • Advanced power management system that incorporates user dashboards and controls the charging process.
