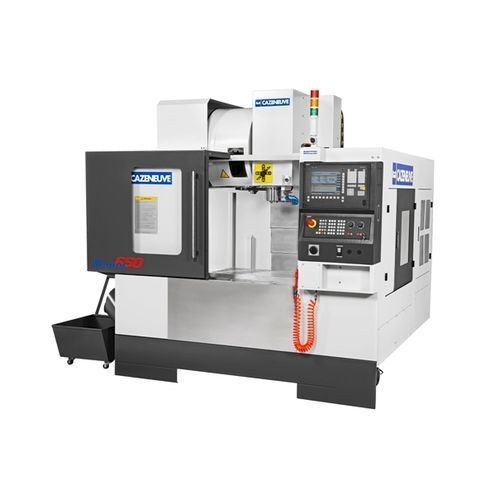

3-axis machining center XENON 650
vertical

3-axis machining center
3-axis machining center
3-axis machining center
3-axis machining center
3-axis machining center
3-axis machining center
3-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
X travel

650 mm (26 in)

Y travel

510 mm (20 in)

Z travel

610 mm (24 in)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 10,000 rpm (62,832 rad.min-1)

Power

Min.: 5.5 kW (7.48 hp)

Max.: 7.5 kW (10.2 hp)

Description

MECHANICAL CHARACTERISTICS Hardened and ground ball bearing slides Grooved one-piece cast iron frame Large-sized ball screws MACHINING CAPACITIES X axis: 650 mm Y axis: 510 mm Z axis: 610 mm STANDARD EQUIPMENT ISO 40 (DIN 69871) spindle taper Maximum rotation speed: 10 000 rpm 24 station Random tool changer Screw chip conveyor CNC FANUC 0i MD with MANUAL GUIDE i conversational software SIEMENS 840 Dsl with SHOP MILL conversational software FAGOR 8065 DIMENSIONS AND WEIGHT Depth x width x height: 220 x 200 x 260 cm Weight: 3800 kg
