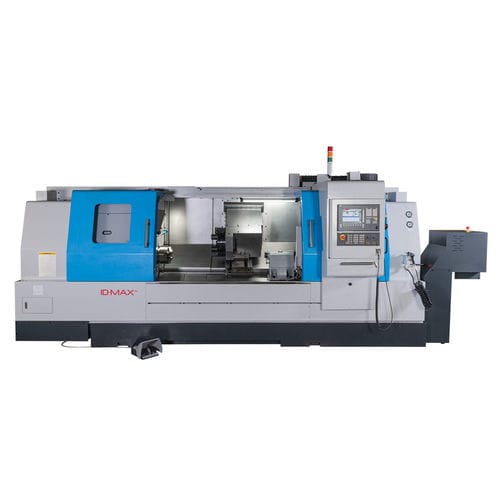

CNC lathe ID-MAX 700horizontal2-axisA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- A2-8
- Number of tool stations
- 12 tools
- Applications
- for large parts
- Other characteristics
- high-productivity, teach-in, inclined bed, large, milling, with turret, 1-spindle
- Diameter
750 mm
(29.53 in)- Spindle speed
2,700 rpm
(16,964.6 rad.min-1)- Axe X
305 mm
(12 in)- Axe Z
1,250 mm, 1,750 mm, 2,250 mm, 3,150 mm
(49 in, 69 in, 89 in, 124 in)- Nominal power
22 kW, 72 kW
(29.9 hp, 97.9 hp)- Overall lenght
5,700 mm, 6,100 mm, 6,400 mm, 7,000 mm
(224 in, 240 in, 252 in, 276 in)- Overall width
2,200 mm
(87 in)- Overall height
2,300 mm
(91 in)- Weight
7,000 kg, 9,500 kg, 10,500 kg, 12,000 kg
(15,432 lb, 20,944 lb, 23,149 lb, 26,455 lb)
Description
This lathe with an inclined bed provided with prismatic guideways is ideal for making unit parts or runs, of medium and large size. Its structure provides substantial volume allowing for optimum access for setting up parts, tools and accessories.
