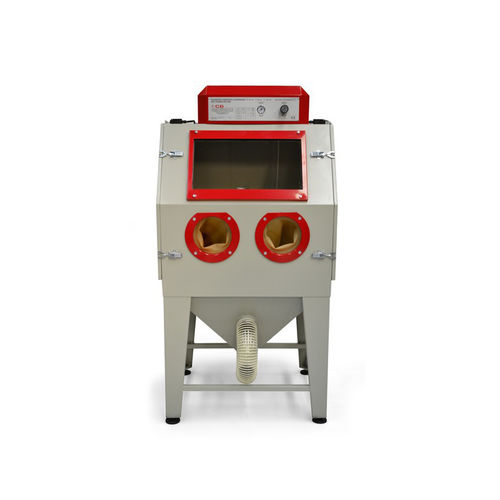

Injector blast cabinet PAL2-N

manualcompactwith turntable

Shot peening and blasting booths have been designed and produced to guarantee multiple operations in the field of surface finishing: shot peening, decorative sandblasting, metal hardening, deburring, surface treatments, cleaning Machining operations on parts vary depending on the type of abrasive used: corundum, sand, glass microspheres, synthetic or vegetable granules, metal abrasives For maximum functionality this machine can be equipped with the following accessories: dust collector filter with self-cleaning compressed air system loading cart rotary table abrasive regenerating cyclone Technical features Useful measures Front - 880 mm Side - 600 mm Overall measures Front - 920 mm Side - 1100 mm Booth access - side, left and right Aspirator - 400 V 50 Hz 0.75 kW Booth light - led 20 W Air consumption - injector ∅ 3 mm – 600 l/min ∅ 3.5 mm – 800 l/min ∅ 4 mm – 1200 l/min Operating pressure - from 1.5 to 8 bar Tungsten carbide nozzle - ∅ 6 – 8 or 10 mm Weight - 120 kg Booth conversion from vacuum to pressure Pressure peening and blasting booths, unlike traditional vacuum booths, shorten processing times and engrave parts more easily The pressure booths can be equipped with a wear-resistant rubber coating to increase their resistance and with a pressure regulator to control the abrasive output speed, with the following advantages: possibility of working on different surfaces (aluminium, iron, glass, stainless steel, etc.) obtain deep engravings or light polishing avoid nicking workpieces
