Solvent cleaning machine EW 100
water jetsprayby rotation/agitation

solvent cleaning machine
solvent cleaning machine
solvent cleaning machine
solvent cleaning machine
solvent cleaning machine
solvent cleaning machine
solvent cleaning machine
Add to favorites
Compare this product


Characteristics

Technology
solvent, water jet, spray, by rotation/agitation
Operational mode
automatic
Applications
for the chemical industry, for the printing industry, for the recycling industry, for the food industry, for the textile industry, for the plastics industry, industrial, for the pharmaceutical industry, process
Other characteristics
stainless steel, high-pressure, front-loading, closed-loop, ATEX, with rinsing, with desinfection

Description

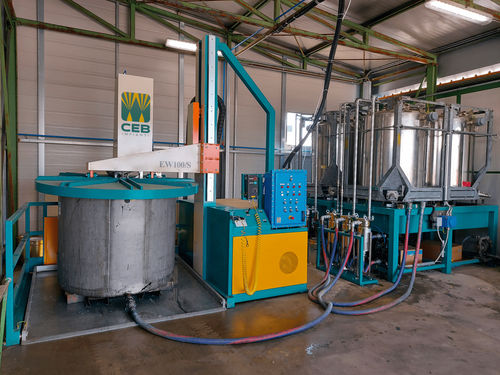

Automated washing machine for: - open top mixing containers, (ø 800~1450mm / H 800~1950mm) - IBCs in HDPE, aluminium and in stainless steel Frame in epoxy-painted steel, galvanized or stainless steel With tilting platform (with liquids collecting basin available as optional) 3 possible cycles: Eco – Standard – Long. Average cycle time: 3 to 5 minutes (excluding loading and unloading operations) Combination with EWEC or EWEC2 for drum washing. *************** Models /S (ATEX certificated) Solvent washing at 40 bar in CLOSED LOOP: 2-phase cycle (wash and rinse) Solvent vapor containment in closed cabinet Liquids Storage system available: min. 2 tanks (for wash and rinse solvents). *************** Models / A (IP55) Water washing (at 250bar, 350 bar or 400bar) in CLOSED LOOP: 3-phase cycle (prewash, wash and rinse) Water washing (at 250bar, 350 bar or 400bar) in OPEN LOOP: 1-phase cycle (wash) It is possible to use - water (at room temperature or at 40°C/70°C temperature) - water with detergents - water with soda - sanitizers - antifoams Liquids Storage systems available: - in CLOSED LOOP: min. 2 tanks (for wash and rinse water). Insulated tanks are used with hot water. - in OPEN LOOP: 1 tank (for buffering deposit) OTHER OPERATIONS: - IBCs/Tanks internal blowing (on-board or with external station) - Automatic/Manual external washing of the containers (with external station). - Washing of conical trunk containers with valve on the bottom (in a closed cabin in 4 phases – washing, washing, washing of the bottom and rinsing valve) - IBC drying (with additional external unit) - IBCs leak test of IBCs in HDPE (with additional external unit)

VIDEO
