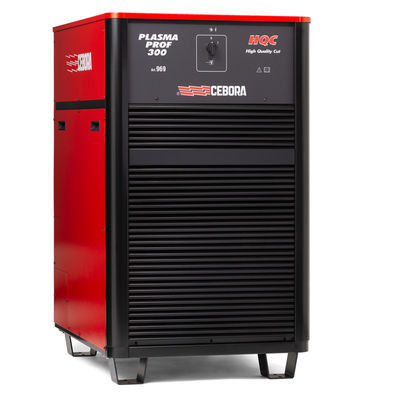

Plasma cutting plasma power supply PLASMA PROF 300 HQC

CNCmanual

MULTIVOLTAGE THREE-PHASE POWER SOURCE FOR HIGH QUALITY CUTTING Software updating in few seconds Possibility to choose digital or analogic interface New manual gas console PGC-D PGC-H2 and WSC for the best cutting perfomance on SS and Al Multi-voltage three-phase (230V 400V 440V 50/60Hz) power source for High Quality Cutting. PLASMA PROF 180 is equipped with automatic system for plasma cutting with the following configurations: CNC or Robot configuration with Analogic or Digital interface Top-quality ARM microprocessor New and extremely reliable hardware e software Flexibility in the adjustment of the cutting current USB port for the software update CP 455G Torch that allows you to cut up to 55° tilt angle. A single torch for 2D cutting [Art. 1642], 3D cutting [Art. 1640] and Robot [Art. 1639] with a single family of consumables renewd and usable for both straight and bevel cutting New manual gas console with a modular system consisting of three units, of which two optional: PGC-D: main console with 7" touchscreen panel and USB port to program cutting parameters for any possible combination of material and gas PGC-H2: optional console dedicated to cutting Stainless Steel and Aluminium cutting with Hydrogen mixtures WSC: optional console for Stainless Steel and Aluminium cutting using water like a secondary fluid Automatic gas console APGC to control in real-time all the gas flows and the automatic switch between cutting and marking HQC CONTROL PANEL, a digital touchscreen remote control panel (suitable for automatic partially integrated systems )
