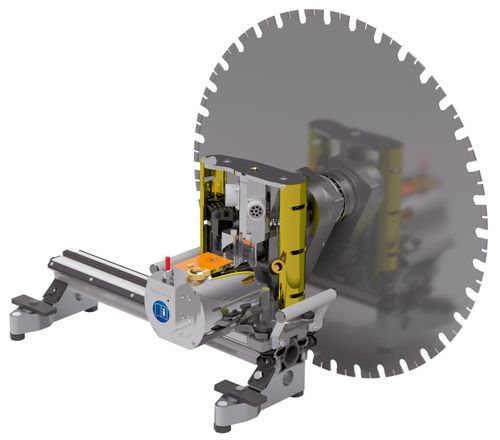

Concrete cutter WSx-296

Product description
Based on the proven WS-296, the WSx-296 wall saw has been further developed. The WSx-296 is equipped with a blade drive motor of up to 17 kW and a new operator-friendly HFx-18 control. The control can be operated from both 16 A and 32 A mains. The accompanying wired remote control handset with color display simplifies the sawing process by presenting all key parameters directly and in real time. The automatic function has been improved to increase cutting speed. The proven CEDIMA rail system remains compatible.

Functions & features

• High-frequency blade drive motor with power up to 17 kW
• Wired remote control handset with color display to show saw parameters
• Operable on 16 A and 32 A power networks
• Blade mounting flange suitable for flush wall cuts
• Water supply can be switched on conveniently from the remote control handset
• Professional plug system

Components

• Saw body WSx-296 with high-frequency blade drive motor
• HFx-18 high-frequency control unit
• UVSx wired remote control handset with color display
• HF-18 connection cable to WSx-296

Technical data

• Max. cutting depth: 430 mm
• Max. blade Ø: 1000 mm
• Min. blade Ø: 650 mm
• Cutting shaft speed: variable
• Blade bore: 60 mm
• Motor power (net): 17 kW
• Motor type: electric
• Supply ratings: 400 V / 16 or 32 A / 50 Hz
• Cutting depth adjustment: electric
• Feed: electric
• Dimensions L/W/H (transport): 472 / 389 / 420 mm
• Weight: 31 kg

Characteristics / Specifications

• Model: WSx-296
• Blade drive: high-frequency motor, up to 17 kW
• Blade diameter range: 650 mm - 1000 mm
• Max cutting depth: 430 mm
• Electrical supply: 400 V, 16 A or 32 A, 50 Hz
• Control: HFx-18 with color display (water supply controllable via remote control handset)
• Transport dimensions: 472 x 389 x 420 mm
• Weight: 31 kg
