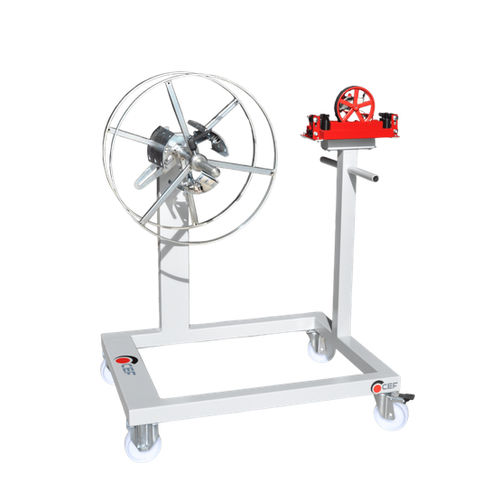

Coil coiler INTER 0420

cablemanualwith length measuring device

Description
Designed to provide essential coiling functions in a compact, cost‑effective format, this economical version produces cable coils quickly. It reduces footprint and simplifies movement in the warehouse, suitable for operators who need a lightweight, easy-to-handle coiling solution.

COILER FEATURES

• Removable wheel-type coiler reel with conical core for easier coil extraction;
• Meter for round cables with diameter from 5 to 23 mm;
• Trolley equipped with 4 wheels, 2 swivel with brake.

Technical Data
Model: 0420
Dimensions mm: 1200x1400x935
Weight Kg: 85
Drive: Manual
Layering: Not present
Meter: 0105
Cable diameter min. mm: 5
Cable diameter max. mm: 23
Cutter: Not present

REEL / SPOOL
REEL
Capacity Kg: 60
Wheel diameter mm: 600
Core diameter min. mm: 215
Core width min. mm: 460
Core width max. mm: 200

Optional

• Metal Medium 50 meter: Meter for round cables with diameter from 1 to 50 mm (error margin +1–2%).
• Arm with pay-off reel: Arm with unwinding reel for coils with 3 adjustable pins depending on inner diameter. Central pin for unwinding spools.

Characteristics / Technical specifications

• Model: 0420
• Dimensions (mm): 1200 x 1400 x 935
• Weight (Kg): 85
• Drive: Manual
• Layering: Not present
• Meter: 0105
• Cable diameter min (mm): 5
• Cable diameter max (mm): 23
• Cutter: Not present
• Reel - Capacity (Kg): 60
• Reel - Wheel diameter (mm): 600
• Reel - Core diameter min (mm): 215
• Reel - Core width min (mm): 460
• Reel - Core width max (mm): 200
