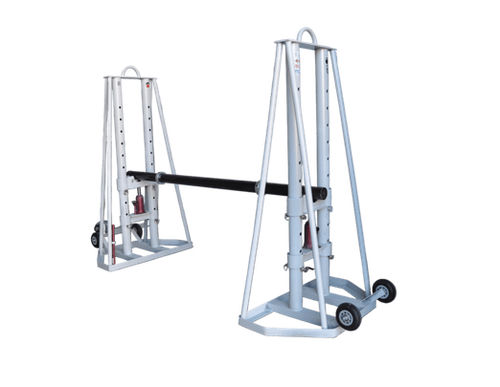

Hydraulic cable drum lifter EISEN 2500Q40

Description
This model provides a simple and functional solution for everyday lifting and cable unwinding tasks. Suitable for standard site applications and for operators seeking equipment with a balanced performance-to-operating-cost ratio.

Features EISEN 2500Q40:

• Double bearing to facilitate shaft rotation
• Transport wheels for mobility
• Hydraulic lifting system with hand pump
• Adjustable shaft holders at multiple heights
• Integrated shaft with collars to prevent drum displacement during unwinding

Technical data
Model: 0540.2500
Dimensions mm: 820x800x490
Weight Kg: 70
Lifting: Hydraulic

Drum
Drum – minimum diameter mm: 600
Drum – maximum diameter mm: 2500
Shaft diameter mm: 75
Drum – minimum width mm: 280
Drum – maximum width mm: 1500
Drum – max load kg: 4000

Specifications / technical details

• Model: 0540.2500
• Commercial name: EISEN 2500Q40
• Dimensions (LxWxH) mm: 820x800x490
• Weight: 70 Kg
• Type of lifting: Hydraulic (hand pump)
• Maximum drum capacity: 4000 kg
• Drum diameter: from 600 mm to 2500 mm
• Shaft diameter: 75 mm
• Drum width: from 280 mm to 1500 mm
• Accessories/particulars: double bearing, transport wheels, integrated collars, adjustable shaft holders
