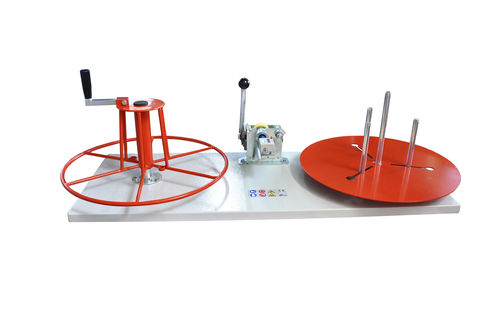

Hank rewinder-winder SMALL 0300
cablecoilfor wires

hank rewinder-winder
hank rewinder-winder
hank rewinder-winder
hank rewinder-winder
hank rewinder-winder
hank rewinder-winder
Add to favorites
Compare this product


Characteristics

Type
cable, coil, for wires, cable drum, hank, for hoses
Operation
manual

Description

Coiler/uncoiler for measuring and cutting cable coils from reels or coils. This machine has been designed to produce cable coils from reels or coils. It has an extremely strong and light base which can be easily used on the workbench. FEATURES Folded and welded steel FRAME STEEL WINDING spool to easily tie coils and collapsible handle to take off the coil Sheet STEEL UNWINDING spool with 3 adjustable aluminium pins to tension the coil to be unwinded and one central pin to insert the drum to be unwinded FEATURES OF THE MEASURER (CODE 99) Measurer for round cables with a diameter of 5 to 16 mm (margin of error +/- 1-2 %) Aluminum knurled metric wheel for a greater grip and better measuring. Mechanical meter counter with manual reset TECHNICAL CHARACTERISTICS Dimensions mm - 1200 X 285 X 550 Weight KG - 25 Control - Manual Measurement device - Cod.99 Cable Ø min.mm - 5 Cable Ø max.mm - 16
