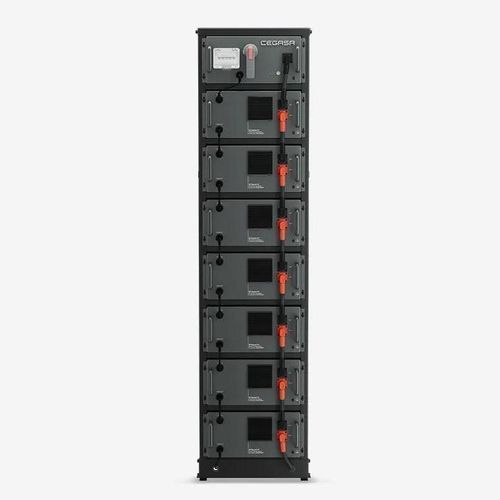

LFP battery system E/Xpand HV

modularcommercialindustrial

Description
E/Xpand HV is a 19" rack-mount modular lithium-ion battery system engineered for high-density commercial and industrial energy storage. Based on LFP cells and a smart BMS, it supports scalable capacities from single racks to multi-MWh containerized installations and provides remote monitoring via CEGASA Cloud.

Key features

• High energy-density architecture using LFP (Lithium Iron Phosphate) cells for thermal and chemical stability.
• Compact 19" rack design enabling integration into 20' and 40' container solutions.
• Plug & play mechanical and electrical connectors for fast, safe installation and a self-supporting quick-assembly structure.
• Smart control with string management and an advanced BMS to optimise performance and cycle life.
• Automatic pre-charging system and safety-oriented design for secure operation.
• Air-cooled modules to optimise thermal performance and extend cycle life.
• Remote monitoring and configuration via CEGASA Cloud for telemetry, diagnostics and maintenance.

Modules (nominal values)

• Module 7 — Energy: 100 kWh; Nominal voltage: 358 V; Recommended current: 140 A; Nominal power: 72 kW; Dimensions (mm): 550x832x2150; Weight: 970 kg
• Module 8 — Energy: 114 kWh; Nominal voltage: 410 V; Recommended current: 140 A; Nominal power: 82 kW; Dimensions (mm): 1100x832x1640; Weight: 1150 kg
• Module 9 — Energy: 129 kWh; Nominal voltage: 461 V; Recommended current: 140 A; Nominal power: 93 kW; Dimensions (mm): 1100x832x1640; Weight: 1270 kg
• Module 10 — Energy: 143 kWh; Nominal voltage: 512 V; Recommended current: 140 A; Nominal power: 103 kW; Dimensions (mm): 1100x832x1640; Weight: 1390 kg
• Module 11 — Energy: 157 kWh; Nominal voltage: 563 V; Recommended current: 140 A; Nominal power: 113 kW; Dimensions (mm): 1100x832x1640; Weight: 1510 kg
• Module 12 — Energy: 172 kWh; Nominal voltage: 613 V; Recommended current: 140 A; Nominal power: 123 kW; Dimensions (mm): 1100x832x2150; Weight: 1650 kg
• Module 13 — Energy: 186 kWh; Nominal voltage: 666 V; Recommended current: 140 A; Nominal power: 134 kW; Dimensions (mm): 1100x832x2150; Weight: 1770 kg
• Module 14 — Energy: 200 kWh; Nominal voltage: 717 V; Recommended current: 140 A; Nominal power: 144 kW; Dimensions (mm): 1100x832x2150; Weight: 1920 kg
• Module 15 — Energy: 215 kWh; Nominal voltage: 768 V; Recommended current: 140 A; Nominal power: 154 kW; Dimensions (mm): 1100x832x2150; Weight: 2050 kg
• Module 16 — Energy: 229 kWh; Nominal voltage: 819 V; Recommended current: 140 A; Nominal power: 165 kW; Dimensions (mm): 1650x832x1640; Weight: 2190 kg
• Module 17 — Energy: 243 kWh; Nominal voltage: 870 V; Recommended current: 140 A; Nominal power: 175 kW; Dimensions (mm): 1650x832x1640; Weight: 2310 kg
• Module 18 — Energy: 257 kWh; Nominal voltage: 922 V; Recommended current: 140 A; Nominal power: 185 kW; Dimensions (mm): 1650x832x2150; Weight: 2460 kg

Technical characteristics / specifications

• Chemistry: LFP (Lithium Iron Phosphate) cells for enhanced safety and thermal stability.
• Scalability: from 100 kWh up to 2.5 MWh in 20' containers and up to 5 MWh in 40' containers via parallel strings.
• Form factor: Standard 19" rack modular design with multiple configurations to fit container heights.
• Cooling: Air-cooled module architecture to optimise thermal performance and cycle life.
• BMS: Smart Battery Management System providing string management, cycle optimisation and safety functions (including pre-charging).
• Control levels: Three levels of smart control for integration with leading market inverters.
• Safety & compliance: Pre-charging system, smart BMS and relevant certifications available (see datasheets/certificates).
• Integration: Plug & play mechanical and electrical connectors for faster installation and reduced commissioning time.
• Remote management: CEGASA Cloud for remote configuration, monitoring and diagnostics.
• Manufacturing: European technology and production standards.
