Lithium-ion battery system E/Bick LV
modular48 Vfor electric vehicles

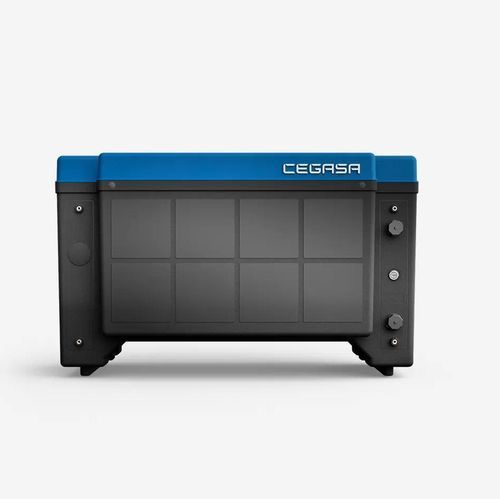

Lithium-ion battery system - E/Bick LV - Cegasa Energía SLU - modular / 48 V / for electric vehicles
Lithium-ion battery system - E/Bick LV - Cegasa Energía SLU - modular / 48 V / for electric vehicles
Lithium-ion battery system - E/Bick LV - Cegasa Energía SLU - modular / 48 V / for electric vehicles - image - 2
Lithium-ion battery system - E/Bick LV - Cegasa Energía SLU - modular / 48 V / for electric vehicles - image - 3
Add to favorites
Compare this product
Go to the Cegasa Energía SLU website for more information

Characteristics

Type
lithium-ion
Configuration
modular
Voltage
48 V
Applications
industrial, for telecommunications equipment, for electric vehicles, commercial
Other characteristics
stackable, with internal battery management system
Length / diameter

Min.: 770 mm
(30.3 in)

Max.: 2,400 mm
(94.5 in)

Width

405 mm
(15.94 in)

Height

Min.: 470 mm
(18.5 in)

Max.: 1,880 mm
(74 in)

Power

Min.: 8,000 W

Max.: 90,000 W

Weight

Min.: 90 kg
(198.42 lb)

Max.: 1,800 kg
(3,968.32 lb)

Energy capacity

Min.: 13 kWh

Max.: 269 kWh

Description

Key benefits
  • Flexible capacity: configurations from 13 kWh to 269 kWh (1–20 modules) for scalable residential systems.
  • Modular & stackable: 48 V modules enable incremental system growth and easy transport.
  • Easy installation: plug & play mechanical and electrical design with quick, safe connectors and self-supporting structure.
  • Advanced management: integrated BMS and control electronics for optimized performance and monitoring.
  • Safe chemistry: LFP cells with integrated pre-charge system and circuit breaker.
  • Wide compatibility: compatible with major low-voltage (LV) inverters on the market.


Overview / Applications
  • E/Bick LV is engineered for residential self-consumption and other commercial or light-industrial applications where modular, low-voltage storage is required. Its compact, stackable architecture simplifies design and deployment while giving end users control over energy flows.
  • Typical applications: residential self-consumption, small commercial sites, microgrids, telecom backup, EV charging support, rural electrification and energy communities.
  • For multi-parallel installations, a certified protection panel is recommended to ensure safe parallel operation.


Technical specifications
  • Capacity range: 13 kWh (1 module) up to 269 kWh (20 modules).
  • Module nominal voltage: 48 V.
  • Stacking: up to 20 modules in a single system (modular architecture).
  • Cell chemistry: LFP (Lithium Iron Phosphate) with integrated pre-charge and circuit breaker.
  • BMS: integrated, in-house designed battery management system and control electronics.
  • Installation: plug & play mechanical and electrical system with quick connectors and self-supporting structure.
  • Compatibility: suitable for major LV inverters; check inverter compatibility and recommended connection schemes.
  • Module-by-module configurations:
    • 1 module — Energy: 13 kWh; Nominal voltage: 48 V; Recommended current: 140 A; Nominal power: 8 kW; Dimensions (mm): 770x405x470; Weight: 90 kg.
    • 2 modules — Energy: 27 kWh; Nominal voltage: 48 V; Recommended current: 250 A; Nominal power: 15 kW; Dimensions (mm): 770x405x985; Weight: 180 kg.
    • 3 modules — Energy: 40 kWh; Nominal voltage: 48 V; Recommended current: 300 A; Nominal power: 18 kW; Dimensions (mm): 770x405x1435; Weight: 270 kg.
    • 4 modules — Energy: 54 kWh; Nominal voltage: 48 V; Recommended current: 400 A; Nominal power: 24 kW; Dimensions (mm): 1585x405x985; Weight: 360 kg.
    • 5 modules — Energy: 67 kWh; Nominal voltage: 48 V; Recommended current: 500 A; Nominal power: 30 kW; Dimensions (mm): 1585x405x1435; Weight: 450 kg.
    • 6 modules — Energy: 81 kWh; Nominal voltage: 48 V; Recommended current: 600 A; Nominal power: 36 kW; Dimensions (mm): 1585x405x1435; Weight: 540 kg.
    • 8 modules — Energy: 107 kWh; Nominal voltage: 48 V; Recommended current: 750 A; Nominal power: 45 kW; Dimensions (mm): 1585x405x1880; Weight: 720 kg.
    • 9 modules — Energy: 121 kWh; Nominal voltage: 48 V; Recommended current: 800 A; Nominal power: 48 kW; Dimensions (mm): 2400x405x1435; Weight: 810 kg.
    • 12 modules — Energy: 161 kWh; Nominal voltage: 48 V; Recommended current: 1000 A; Nominal power: 60 kW; Dimensions (mm): 2400x405x1880; Weight: 1080 kg.
    • 15 modules — Energy: 202 kWh; Nominal voltage: 48 V; Recommended current: 1200 A; Nominal power: 72 kW; Dimensions (mm): 4020x405x1435; Weight: 1350 kg.
    • 16 modules — Energy: 215 kWh; Nominal voltage: 48 V; Recommended current: 1250 A; Nominal power: 75 kW; Dimensions (mm): 4020x405x1880; Weight: 1440 kg.
    • 20 modules — Energy: 269 kWh; Nominal voltage: 48 V; Recommended current: 1500 A; Nominal power: 90 kW; Dimensions (mm): 4020x405x1880; Weight: 1800 kg.
    • Notes: nominal values provided by the manufacturer; for parallel systems consult a certified protection panel and installer documentation.
