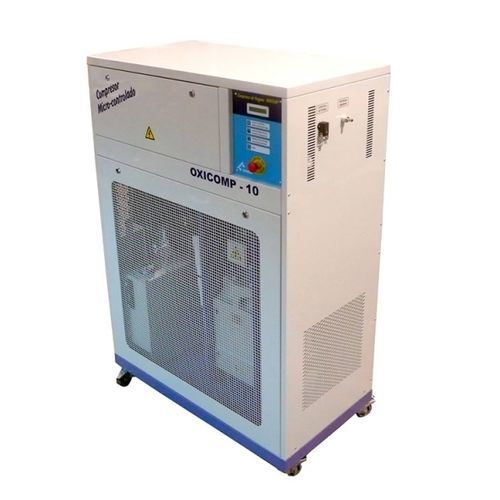

Piston compressor Oxicomp 10
for oxygenelectricmobile

Add to favorites

Compare this product

Go to the CEIMSA website for more information

Characteristics

Technology: piston
Type: for oxygen
Power source: electric
Portability: mobile
Voltage: 400 V, 230 V
Tank volume: 36 cl
(12.2 US fl oz)
Pressure: 100 bar, 150 bar, 200 bar
(1,450.38 psi, 2,175.57 psi, 2,900.75 psi)
Flow: 15,000 l/h
(3,962.58 us gal/h)
Power: 7.5 kW
(10.2 hp)
Length: 1,280 mm
(50 in)
Width: 630 mm
(25 in)
Height: 1,690 mm
(67 in)
Weight: 970 kg
(2,138.5 lb)

Description

Feed pressure according on model from 2 to 5.4 bar (29 to 78 psi) Standard components Electronic circuit Incoming oxygen deposit Electric box Incoming pressure regulator Geared motors Pressure transducer Variador de velocidad Safety valve Lower piston Upper piston Decompression valve Refrigeration elements Antireturn Valve Start/Stop Buttons Latiguillo de alta presión Emergency Stop Latiguillo de baja presión Maintenance The estimated lifespan for segments and o-rings at 200 bars is demonstrated to be 4000 hours. The lifespan of segments and o-rings of the first stage is considerably greater. For maintenance work we recommend to have a spare set of orings and segments and a spare module (upper piston and lower piston) for quick replacements in case of checks or possible breakdowns. Recommended spare parts Upper and Lower pistons Set of lock washers
