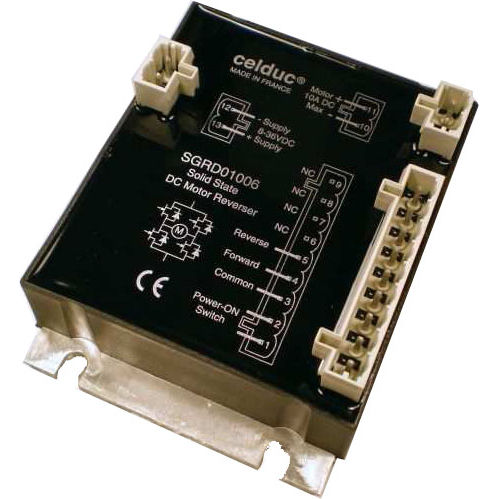

DC motor solid-state reversing unit SGRD01006

Solid-state reversing unit for DC motor control : SGRD01006 This new generation of reversing unit for DC motor control offers all the necessary built-in control protections including protection against wiring errors or short circuit on the input. This version includes the interlocking function to avoid control of the two directions at the same time. Control voltage ranges from 8 to 36VDC and this SSR can switch up to 10A/60Vpk. Coming soon : PWM (Pulse-Width Modulation) soft-starter Typical applications :to control (reverse) small DC motors, electric valves, Peltier modules (TEC, thermo electric coolers / heaters)...
